LCD Construction

LCD Displays

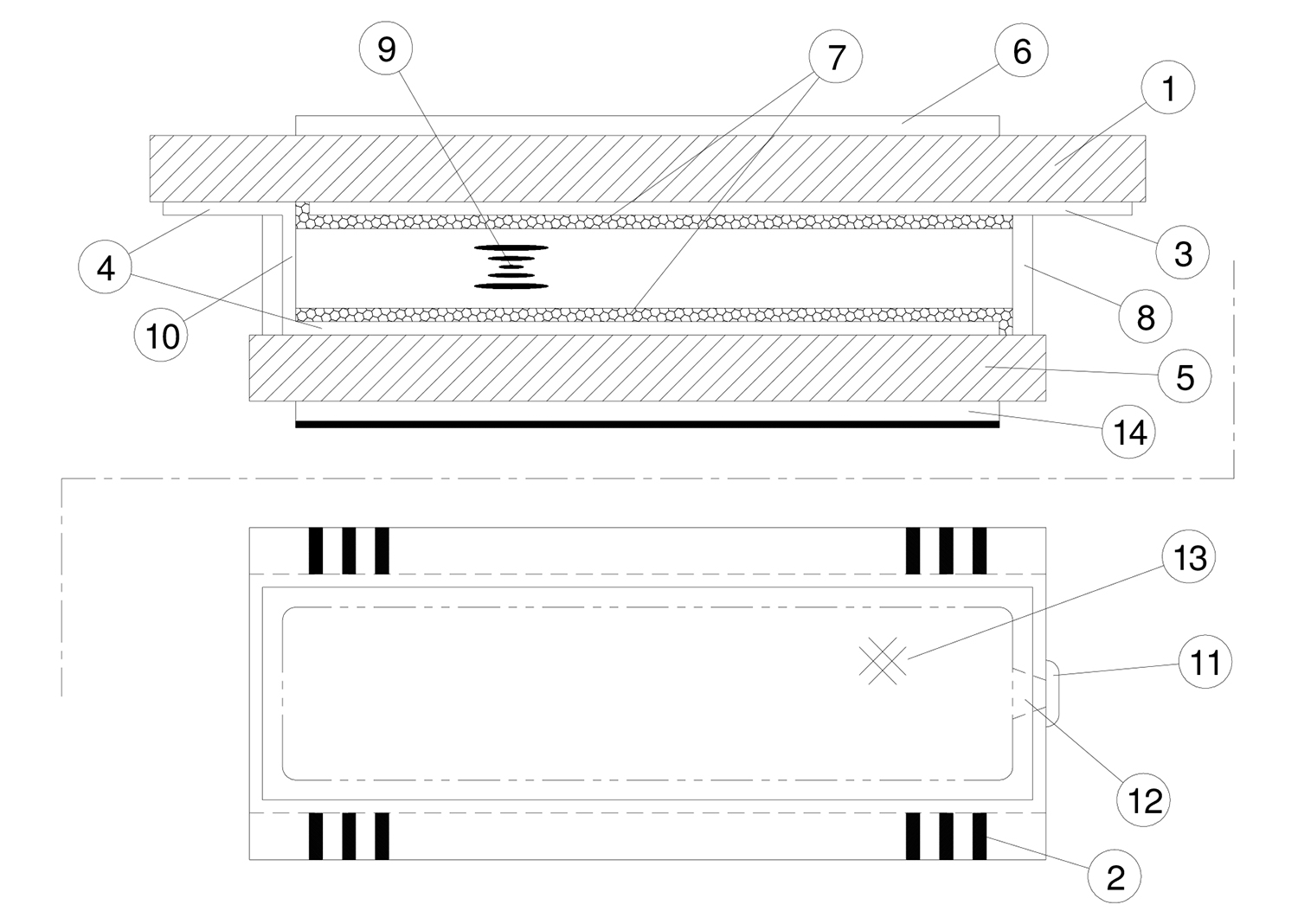

The various parts that make up a standard monochrome LCD

components of monochrome lcd display
  1. F substrate (glass)
  2. Terminal
  3. Segment electrode
  4. Common electrode
  5. B substrate (glass)
  6. Upper polarizing plate
  7. Orientation layer
  8. Sealant
  9. LC (liquid crystal)
  10. Conducting material
  11. Sealant
  12. Inlet
  13. Viewing area
  14. Lower polarizing plate, or lower polarizing plate and reflecting plate
