HDP-MD

Medite Power Supply

  • Image

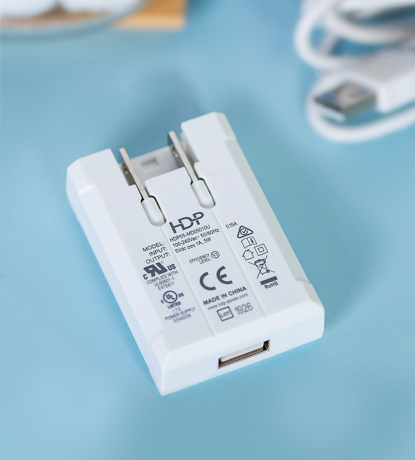

    Medite medical power charger
  • Image

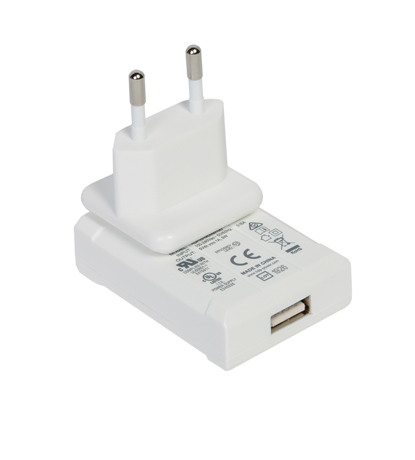

    medite with EU ac adapter
  • Image
    medite with UK ac adapter
  • Image

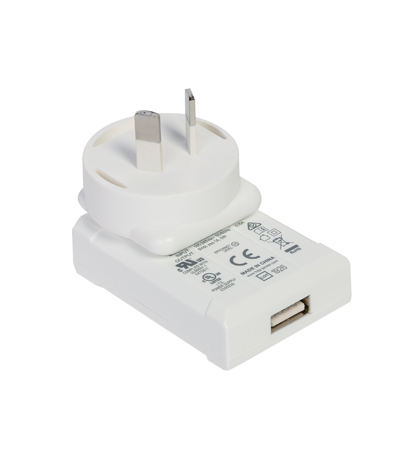

    medite with AU ac adapter
  • Image

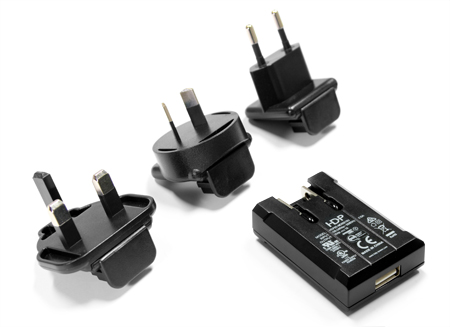

    black medite with global adapters

Request a Quote

IEC 60601 Medical and I.T.E. Power Supply Series

Medite is a medical grade USB power supply designed for both ITE and medical applications. This slim wall adapter offers 5W or 12W of power and is available in black or white. This medical AC DC power supply comes standard with a USB Type A connector. Medite meets many global standards and includes certifications like IEC 60601 and IEC 62368.

This medical USB charger features foldable AC prongs (US only), a slim profile, and global certifications. Global AC adapters are available to pair with this medical USB power supply. Easily customize the Medite medical power supply through the plastic housing color, adding logo pad print, or by changing the output to a fixed DC cord. The DC cable can be spec’d to your product’s requirements. Medite is an ideal, cost effective power solution for a certified medical or ITE power adapter.

Technical Overview

Output 5V 1A (5W model); 5V 2.4A (12W model)
Input Voltage Range 90 ~ 264 VAC
Input Voltage Nominal 120/220 VAC
Input Frequency Range 50 / 60Hz
Product Size (W x L x H) 41.75 x 60.25 x 18.45 mm
Standards / Certifications IEC 62368-1, IEC 60601, UKCA Ready, CEC VI, CB, FCC, UL Listed, UL/c, C-Tick, SAA, CE, RoHS, REACH
Output Options USB (Type A) or Fixed DC Cord
AC Adapters AU, EU, UK, KC
OEM Customization Color, Texture, Logo Pad Print or Laser Etched

Support Documents

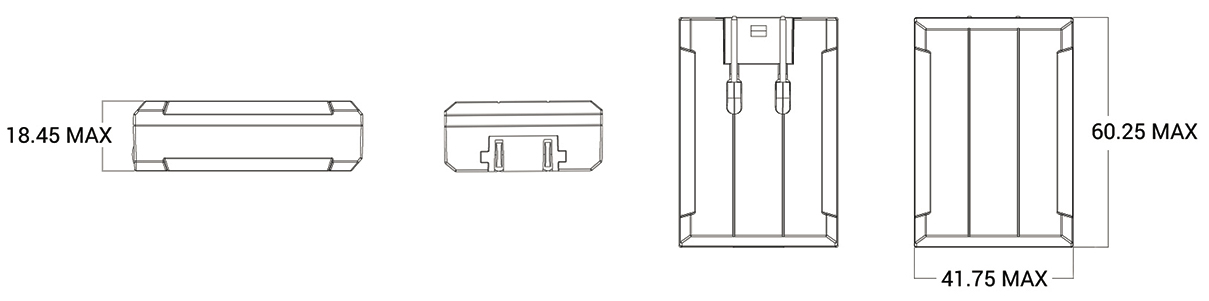

Medite medical power adapter dimensions
