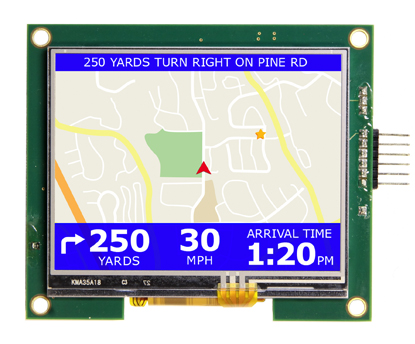

3.5" TFT Embedded Demonstration Board

  • Image
    EMB035TFTDEMO

Request a Quote

3.5" TFT Display Demo Board with Microchip PIC24 MCU

The Displaytech EMB035TFTDEMO is a demonstration and development board for the Displaytech 3.5 inch color TFT display. The display is controlled by a Microchip PIC24FJ256DA210 microcontroller with integrated graphics controller. Furthermore, the demonstration board includes on-board external SRAM for extra frame-buffer memory as well as SPI flash for storing fonts and images. Capacitive touch screen is available for the 3.5" TFT display.

Technical Overview

Display Size 3.5 inch
Display Resolution 320 x 240
External Connectors Mini USB 2.0 and 6-Pin header for Microchip PICKit 3
Microcontroller / Graphics Controller Microchip PIC24FJ256DA210
External SRAM Size 512 Kb
External SPI Flash Size 2 MB
Power Supply Voltage Required 5V (from USB)
Module Size (w x h) 3.5 x 2.5 in
Operating Temperature -20 ~ 70°C
Touch Screen Option Capacitive Touch Panel
