2.8" TFT Embedded Demonstration Board

  • Image

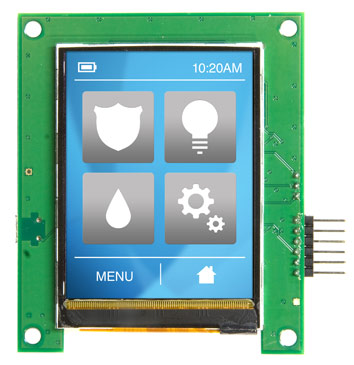

    EMB028TFTDEMO Display Module

Request a Quote

2.8" TFT Display Demo Board with Microchip PIC24 MCU

The Displaytech EMB028TFTDEMO is a demonstration and development board for the Displaytech 2.8 inch color TFT display. The display is controlled by a Microchip PIC24FJ256DA210 microcontroller with integrated graphics controller. Furthermore, the demonstration board includes on-board external SRAM for extra frame-buffer memory as well as SPI flash for storing fonts and images.

Technical Overview

Display Size 2.8 inch
Display Resolution 240 x 320
External Connectors Mini USB 2.0 and 6-Pin header for Microchip PICKit 3
Microcontroller / Graphics Controller Microchip PIC24FJ256DA210
External SRAM Size 512 Kb
External SPI Flash Size 2 MB
Power Supply Voltage Required 5V (from USB)
Module Size (w x h) 2.75 x 3.25 in
Operating Temperature -20 ~ 70°C
Touch Screen Option Resistive Touch Panel or Capacitive Touch Panel
