EMB024TFTDEMO
2.4" TFT Embedded Demonstration Board
Request a Quote
2.4" TFT Display Demo Board with Microchip PIC24 MCU

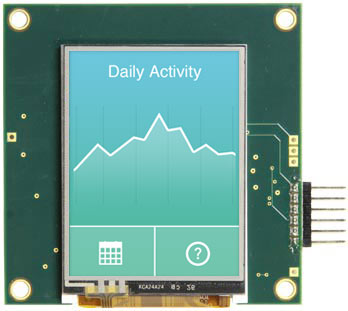

The Displaytech EMB024TFTDEMO is a demonstration and development board for a Displaytech 2.4 inch color TFT display. The LCD display is controlled by a Microchip PIC24FJ256DA210 microcontroller with integrated graphics controller. Furthermore, the demonstration board includes on-board external SRAM for extra frame-buffer memory as well as SPI flash for storing fonts and images.
Technical Overview
| Display Size | 2.4 inch |
| Display Resolution | 240 x 320 |
| External Connectors | Mini USB 2.0 and 6-Pin header for Microchip PICkit 3 |
| Microcontroller / Graphics Controller | Microchip PIC24FJ256DA210 |
| External SRAM Size | 512 Kb |
| External SPI Flash Size | 2 MB |
| Power Supply Voltage Required | 5V (from USB) |
| Module Size (w x h) | 2.72 x 2.75 in |
| Operating Temperature | -20 ~ 70°C |
| Touch Screen Option | Resistive Touch Panel |
