INT035TFT

3.5" Integrated TFT Driver Board

  • INT035TFT

Request a Quote

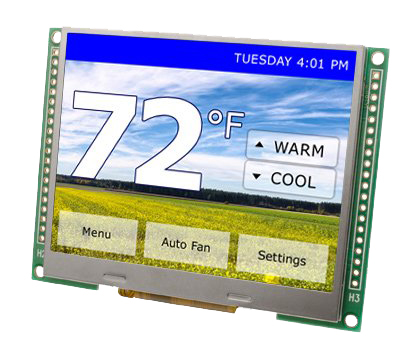

Auto-Initializing LCD Driver Board with Integrated 3.5" TFT Display

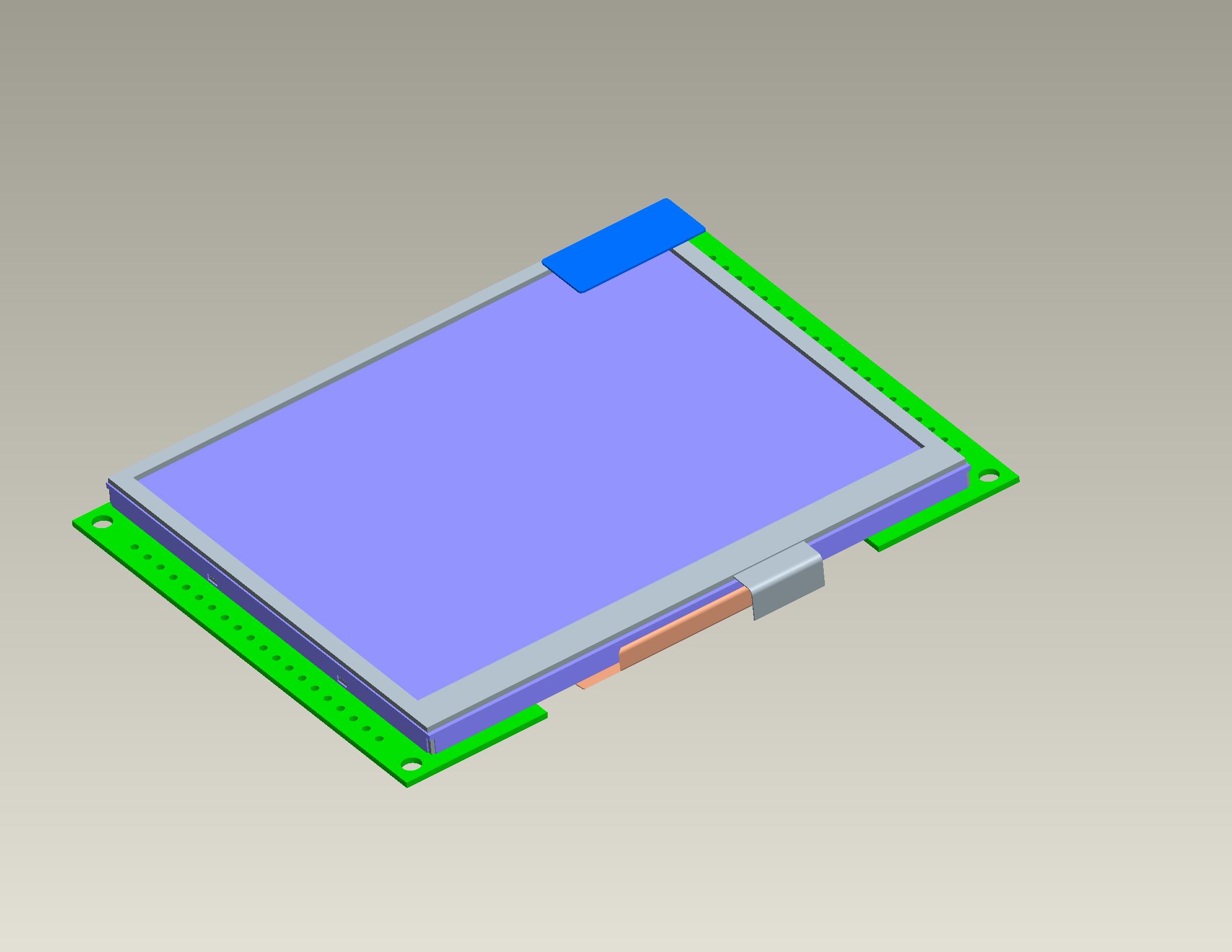

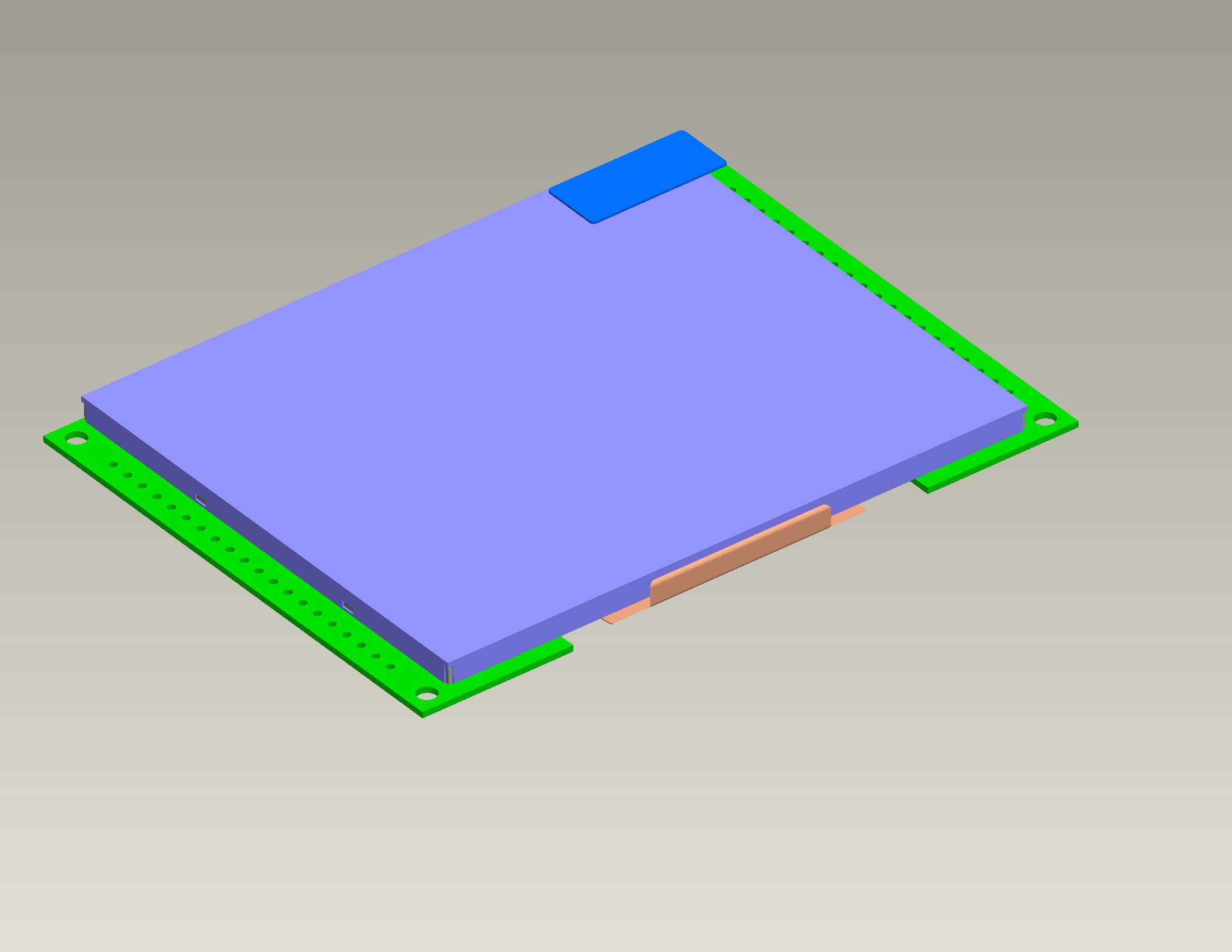

INT035TFT and INT035TFT-TS are embedded display driver boards based on our 3.5 inch 320 x 240 RGB resolution TFT display module. Mounted on the embedded board is the Solomon Systech SSD1963 LCD controller that supports common RAM-less LCD drivers and offers the following features and benefits:

  • 8080/ 6800 MCU Interface
  • Built-in 1215K byte Frame Buffer
  • Screen Display Rotation
  • Vertical Scrolling
  • Display Mirroring
  • Programmable Contrast and Color Saturation Control
  • Auto-Initialization of TFT Display
  • Embedded 4-wire Resistive Touch Panel Control
  • Built-in Clock Generator
  • Dynamic Backlight Control via PWM Signal
  • Deep Sleep Mode for Power Saving

Technical Overview

Display Size 3.5 inch
Display Resolution 320 (RGB) x 240
Viewing Angle 12 o'clock
Interface Type 8080 or 6800 MCU
LCD Controller IC Solomon Systech SSD1963
Module Size (w x h) 87 x 66 mm
Operating Temperature -20 ~ 70°C
Touch Screen Option 4-Wire Resistive Touchscreen
