SEA0009

HDMI Conversion Board with 5" RGB TFT Display

  • Image
    SEA0009

Request a Quote

Adapter board with RGB display for embedded applications that supply HDMI video output

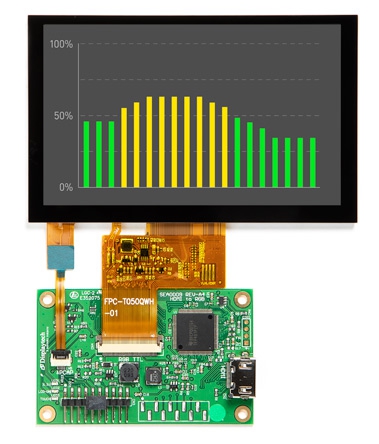

The SEA0009 is a display format converter board that translates HDMI video output to 24-bit true-color RGB. The board includes a 5" RGB TFT display with optional capacitive touch. The I²C capacitive touch screen controller signals are passed through to the host interface. The board is great for use with a Raspberry Pi (such as the Raspberry Pi 3 Model B or A+) or any single-board computer that provides an HDMI video output. There is a programmable on-board EEPROM that provides the HDMI video source with an EDID (the display resolution configuration).

Technical Overview

Compatibility Raspberry Pi, SBC, or personal computer with HDMI output
External Interfaces HDMI, MCU, 24-bit RGB, PCAP I2C, EDID
Included Display 5-inch RGB TFT (DT050ATFT or similar)
Display Resolution Supports up to 1080p in 24-bit true-color pixel format
Display Backlight Current 60mA (75 mA Max)
Dimensions (w x h) 121 x 76 mm
Power Supply Voltage 5V
Display Touch Screen Option Capacitive Touchscreen
Display Touch Screen Controller Focaltech FT5426 (or similar)
Displaytech Part Number SEA0009

Technical Support Notes

Display

See DT050ATFT for display specific documents.

Backlight Variant

Default backlight configuration is for DT050ATFT (60mA). See Section 6 in the datasheet for more details.

PCAP Sample Code

Verify that line 45 in the sample code is defined for the 5" display:

#define DT050TFT

Setup SEA0009 (PCAP) on Raspberry Pi

A quick overview on how to set up the SEA0009 HDMI converter with DT050ATFT-PTS on Raspberry Pi

  1. Create a Raspbian Stretch Full SD card using Etcher
  2. Modify /boot/config.txt to enable i2c and the 5 HDMI settings

    Add these lines at the end of the file, to enable i2c, the PWM, and to set the LCD parameters:

    - #SEACOMP demo
    - dtparam=i2c_arm=on
    - gpio=18=op,dh
    - hdmi_force_hotplug=1
    - hdmi_group=2
    - hdmi_mode=87
    - hdmi_cvt 800 480 60 6 0 0 0
  3. Connect all hardware together
  4. Start up Raspberry Pi and go through the setup
  5. Obtain the the touchscreen driver and Slideshow application onto a USB stick. Insert the USB stick, open file manager, open a command line, and run the setup

See this Raspberry Pi Getting Started doc.

PCAP driver directions for SEA0009 on Raspberry Pi

Building the Kernel
  1. Follow Raspberry Pi website instructions for kernel development
    • Download/install kernel headers
    • Download other things (gcc? make?)
    • Patch driver
    • Make modules install
    • Copy compiled module back over the one on the USB stick
  2. To build the modified driver, apply the patch edt-ft5x06.patch to edt-ft5x06.c, then

    make -j4 modules install

Technical Forum

For any technical questions on this display, please post in the SEA0009 forum.
