64128L Graphic LCD Module
Request a Quote
128x64 Monochrome Graphic Display

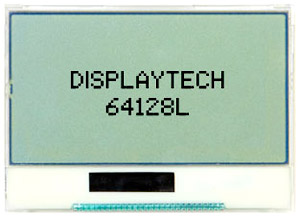

Our 64128L monochrome graphic LCD module has a viewing area of approximately 60 x 30 mm. This LCD is suitable for a wide variety of applications and is available with several different backlight colors. The COG IC is the Sitronix ST7565R. This LCD has a THRU-HOLE PIN interface.
The ST7565R is a single-chip dot matrix LCD driver that can be connected directly to a microprocessor bus. 8-bit parallel or 4-line SPI display data sent from the microprocessor is stored in the internal display data RAM and the chip generates a LCD drive signal independent of the microprocessor. Because the chips in the ST7565R contain 65x132 bits of display data RAM and there is a 1-to-1 correspondence between the LCD panel pixels and the internal RAM bits, these chips enable displays with a high degree of freedom. The ST7565R chips contain 65 common output circuits and 132 segment output circuits, so that a single chip can drive a 65x132 dot display (capable of displaying 8 columns x 4 rows of a 16x16 dot kanji font).
|Display Resolution||128 x 64|
|Viewing Angle||6 o'clock or 12 o'clock|
|LCD Driver IC||Sitronix ST7565R|
|Module Size (w x h x d)||68.8 x 49.2 x 8.5 mm|
|View Area (w x h)||60.6 x 33.1 mm|
|Pixel Size||0.4 x 0.4 mm|
|Driving Method||1/65 Duty, 1/9 Bias|
|Operating Temperature||Wide (-20 ~ 70°C)|

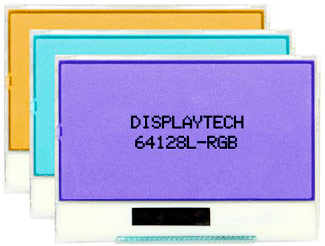

|Options||RGB Backlight Available|
