32128A Series

32128A Graphic LCD Module

  • Image
  • Image

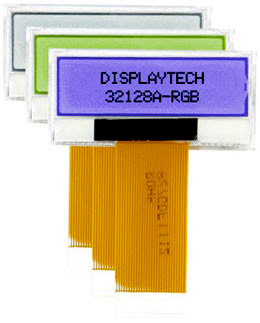

    32128A-RGB Display Module

Request a Quote

128x32 Monochrome Graphic LCD Display

The 32128A is our smallest standard monochrome graphic LCD module.  This LCD is ideal for remote controls and hand held products, as well as for applications that require a small, high-resolution display.  The COG IC is the Sitronix ST7565V.  This LCD has a FPC interface.

The ST7565V is a single-chip dot matrix LCD driver that can be connected directly to a microprocessor bus. 8-bit parallel or serial display data sent from the microprocessor is stored in the internal display data RAM and the chip generates a LCD drive signal independent of the microprocessor.

Technical Overview

Display Resolution 128 x 32
Viewing Angle 6 o'clock
Interface Type 8-Bit Parallel
Display Connector FPC
LCD Driver IC Sitronix ST7565V
Module Size (w x h x d) 41.3 x 19.7 x 8.1 mm
View Area (w x h) 36.1 x 9.95 mm
Pixel Size 0.242 x 0.245 mm
Driving Method 1/33 Duty, 1/6 Bias
Operating Temperature Wide (-20 ~ 70°C)
Options RGB Backlight Available
