HDP-800 Series

800W Embedded Power Supply

  • Image
    HDP-600 Series

Request a Quote

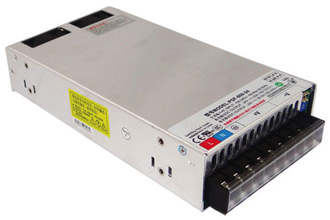

800W Low Profile Embedded AC DC Power Supply

The HDP-800 series is a highly efficient, 800 watt enclosed frame power supply with built-in cooling fan and active PFC. This switch mode power supply is available in 24V and 48V DC outputs. This embedded power supply has a very low profile for 1U equipment at 41mm. The HDP-800 series features ZVS technology to reduce power dissipation, multiple output protections, built-in fan speed control, and more. The 800W embedded power supply includes UL 60950 1, IEC 60950 1, and EN 60950 1 safety certifications.

Technical Overview

Type Closed
Wattage 800W
Input Voltage 90 ~ 264
Voltage 24, 48
Current 0 ~ 27A
Dimensions 226 x 116.5 x 41 mm
Output Single
Certifications UL, cUL, CE, CB, w/PFC

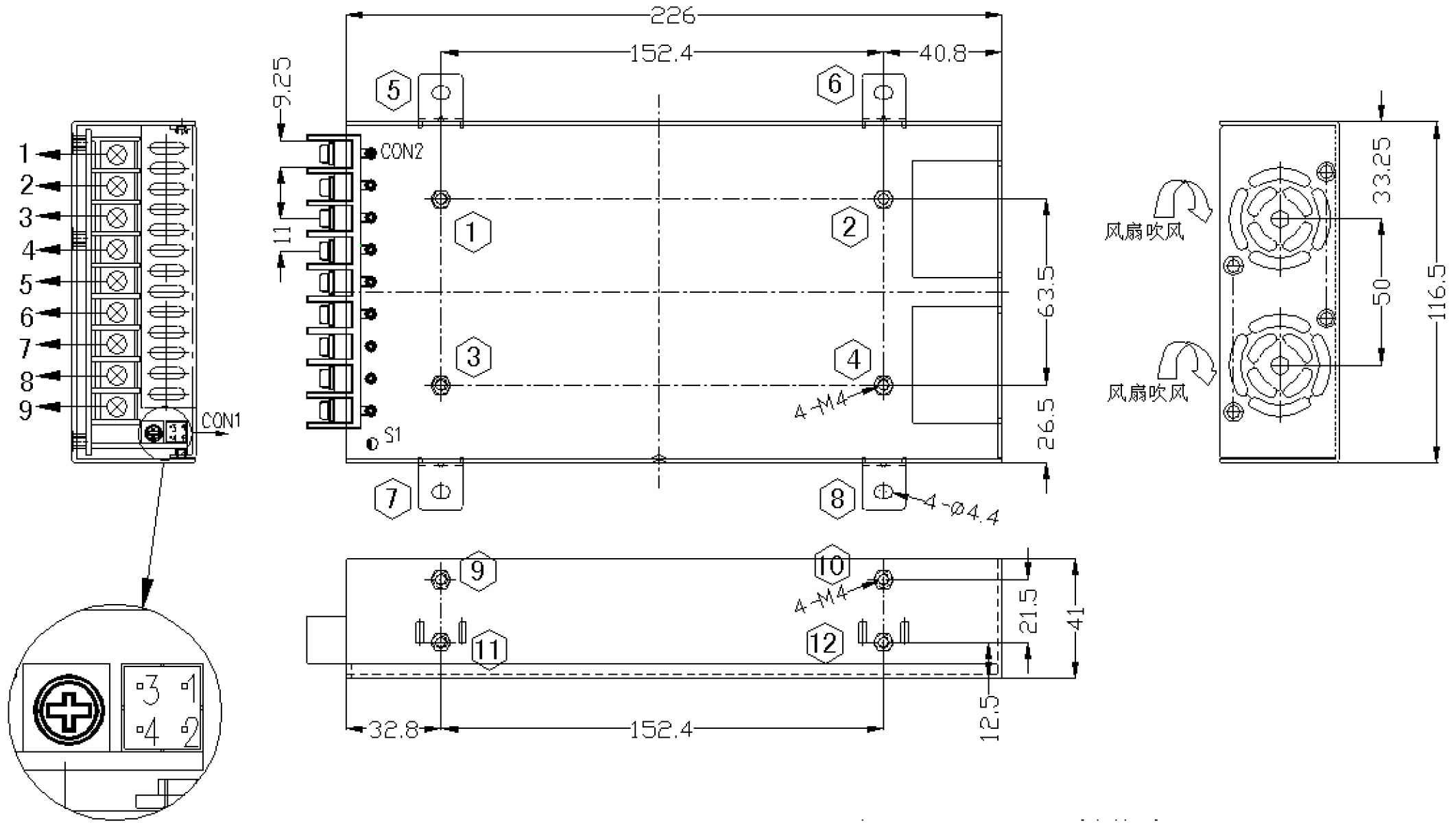

HDP-800 Mechanical Specs
