HDP-75 Series

75W Embedded Power Supply

  • Image
    HDP-75 Series: 75W Embedded Power Supply

Request a Quote

75W Single Output Embedded AC-DC Power Supply

The HDP-75 series is an embedded 75 watt enclosed power supply with top-side assembly and includes conformal coating. This switching power supply is available in 5V, 12V, 15V, 24V, and 48V DC output. The HDP-75 series features high power density, high efficiency, long life, and high reliability. Output protections include over load, over voltage, and shorted circuit protections. The 75W embedded power supply meets many safety certifications and EMC standards including UL 60950 1 (2nd ed.), IEC 60950 1 (2nd ed.), and EN 61000.

Technical Overview

Type Closed
Wattage 75W
Input Voltage 90 ~ 264
Voltage 5, 12, 15, 24, 48
Current 0 ~ 12A
Dimensions 129 x 98 x 38 mm
Output Single
Certifications UL, cUL, CE, CB

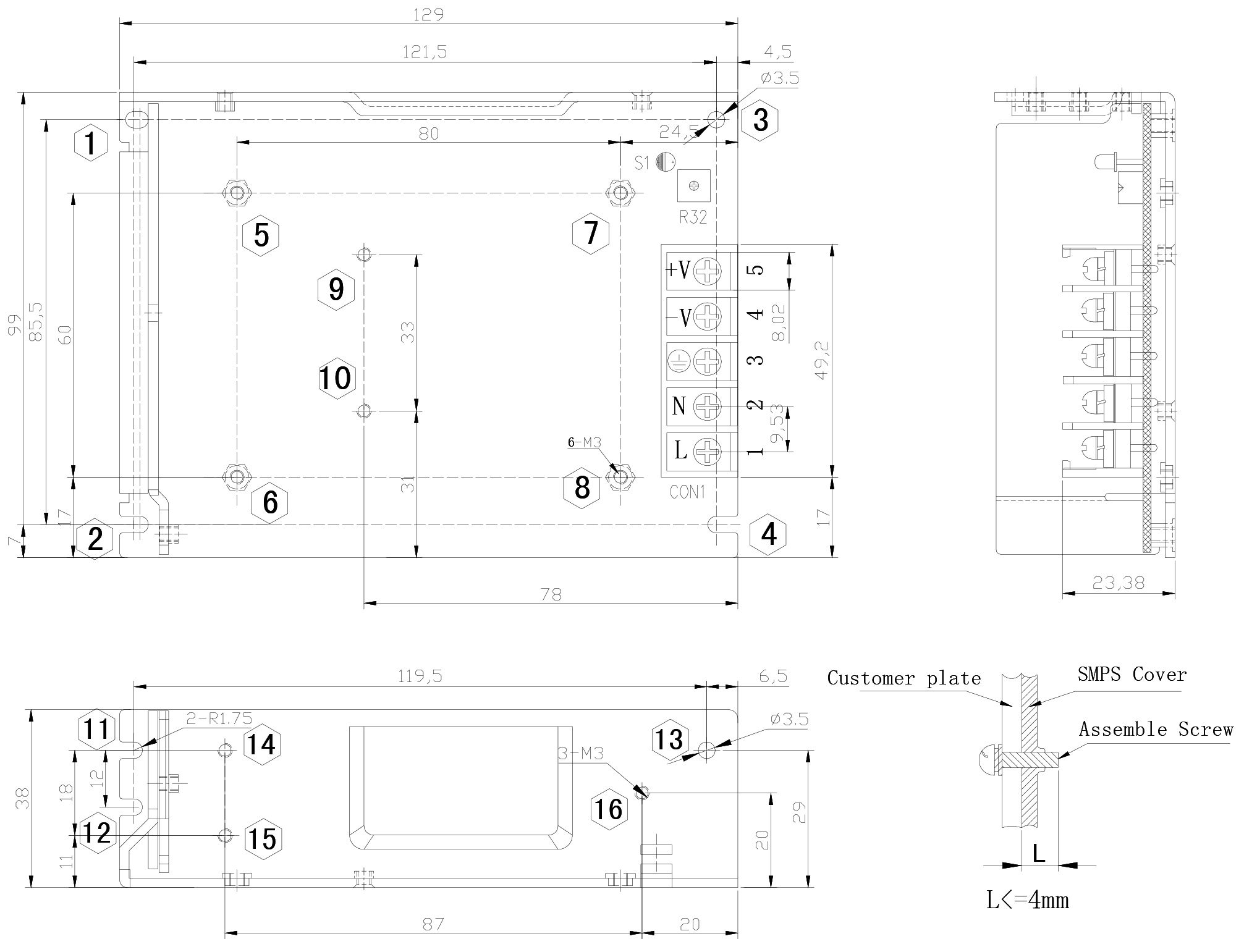

HDP-75 Mechanical Specs
