HDP-O-60 Series

60W Open Frame Power Supply

  • Image
    HDP-O-60 Series: 60W Open Frame Power Supply

Request a Quote

60W Single Output Open Frame AC-DC Power Supply

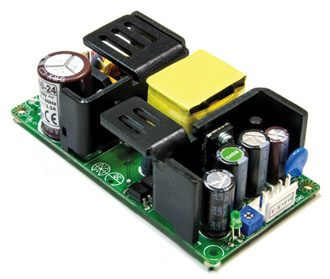

The HDP-O-60 series is a compact embedded 60 watt open frame power supply. This switching power supply is available in 5V, 12V, 15V, 24V, and 48V DC outputs. The HDP-O-60 series features high efficiency with low power consumption. Output protections include over load, over voltage, and shorted circuit protections. The embedded 60W power supply has UL certification and meets EMC standards EN 55022 and EN 61000.

Technical Overview

Type Open
Wattage 60W
Input Voltage 90 ~ 264
Voltage 5, 12, 15, 24, 48
Current 0 ~ 8A
Dimensions 101 x 51 x 30 mm
Output Single
Certifications UL, cUL, CE, CB

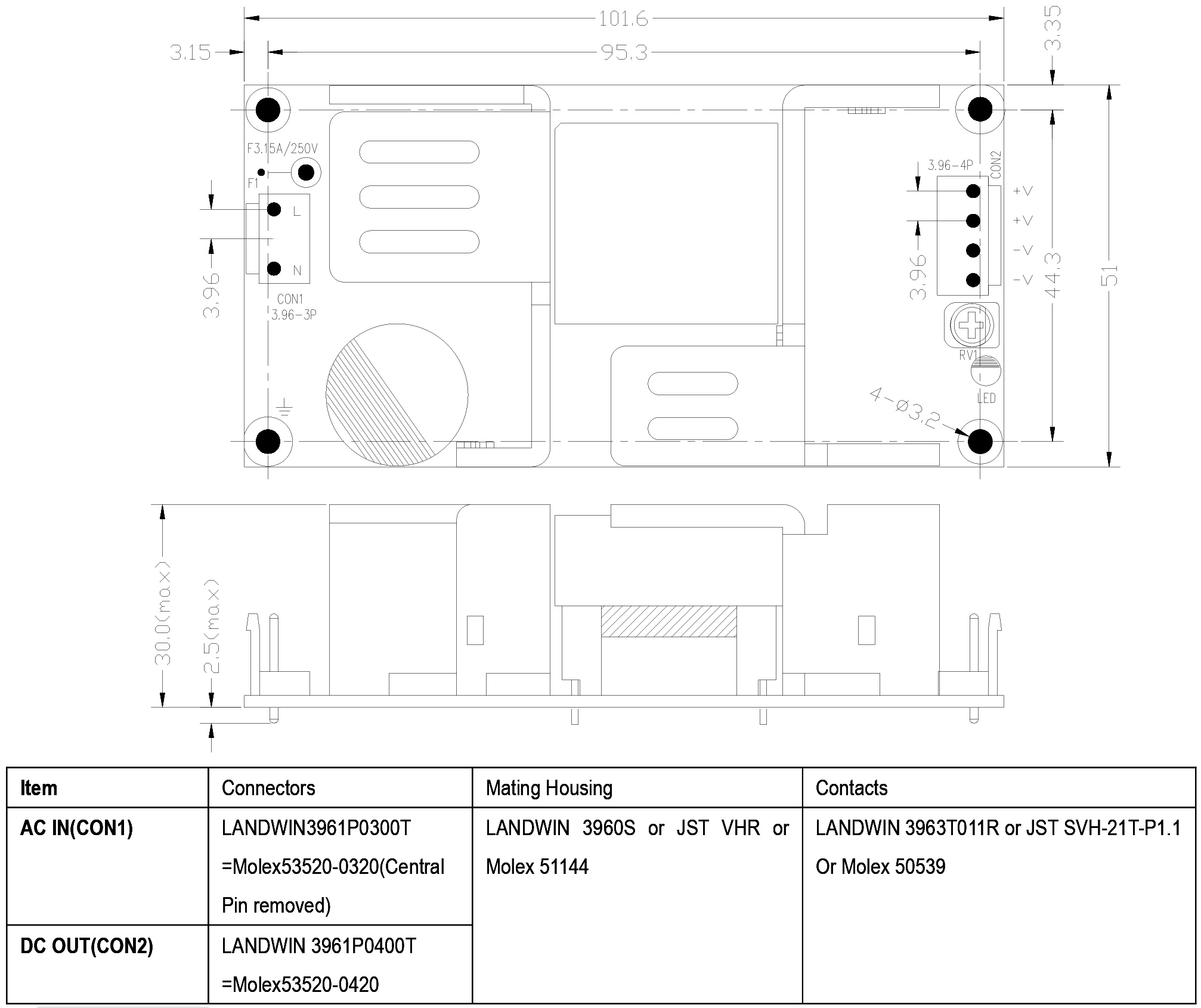

HDP-O-60 Mechanical Specs
