HDP-600 Series

600W Embedded Power Supply

  • Image
    HDP-600 Series

Request a Quote

600W Low Profile Embedded AC DC Power Supply

The HDP-600 series is a highly efficient, 600 watt enclosed frame power supply with built-in cooling fan and active PFC. This switch mode power supply is available in 12V, 24V, 36V and 48V DC outputs. This embedded 600W power supply has a very low profile at 41mm. The HDP-600 series features ZVS technology, built-in fan speed control, built-in remote sense function, UL certification, and more.

Technical Overview

Type Closed
Wattage 600W
Input Voltage 90 ~ 264
Voltage 12, 24, 36, 48
Current 0 ~ 42A
Dimensions 218 x 116.5 x 41 mm
Output Single
Certifications UL, cUL, CE, CB, w/PFC

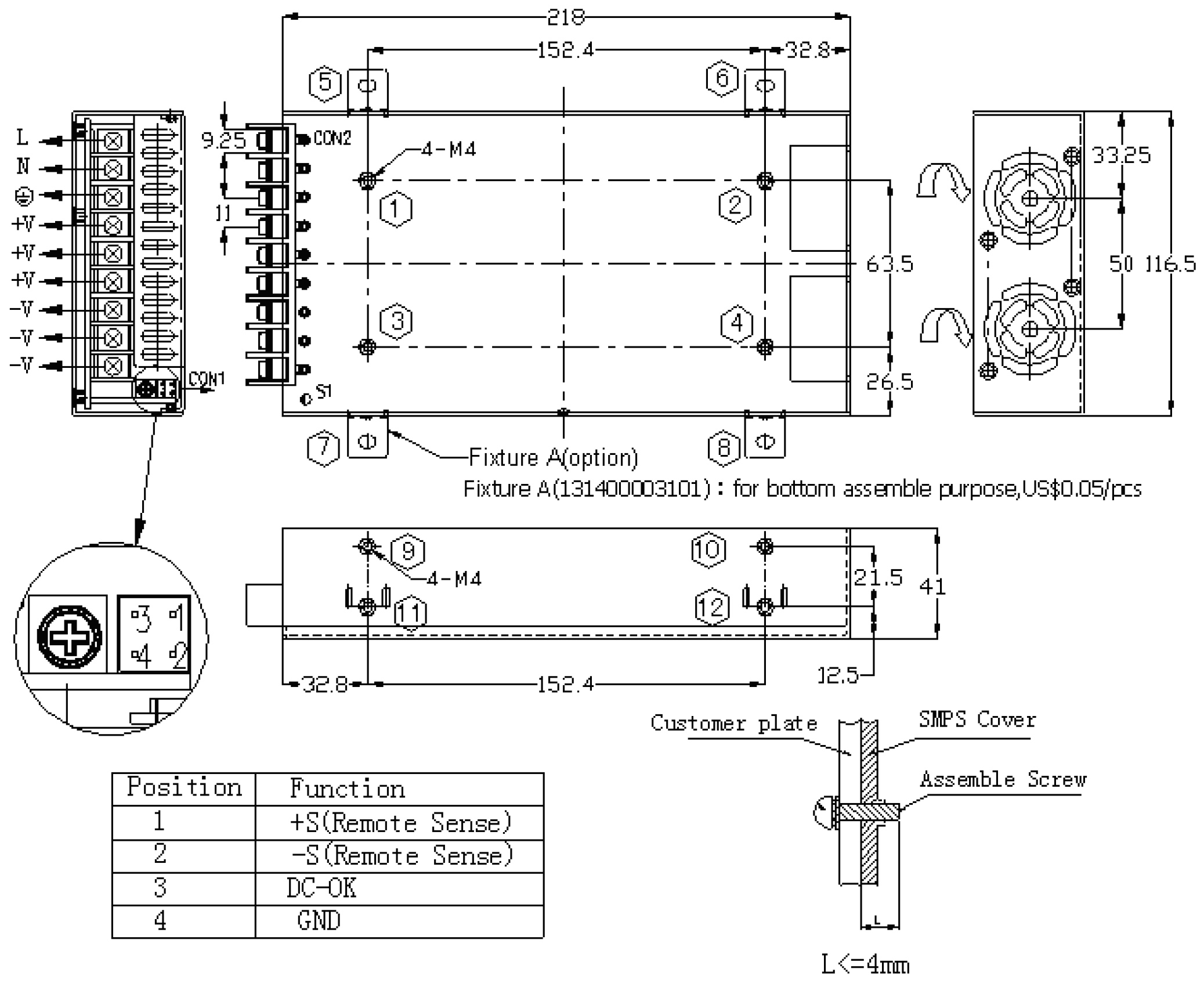

HDP-600 Mechanical Specs
