HDP-50 Series

50W Embedded Power Supply

  • Image
    HDP-50 Series 50W Embedded Power Supply

Request a Quote

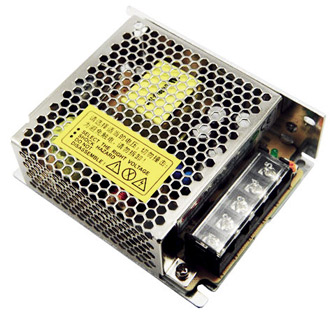

50W Single Output Embedded AC-DC Power Supply

The HDP-50 series is an embedded 50 watt closed frame power supply with top-side assembly and conformal coating. This switching power supply is available in 5V, 12V, 15V, 24V, and 48V DC outputs. The HDP-50 series features high power density, high efficiency, long life, and high reliability. Output protections include over load, over voltage, and shorted circuit protections. The embedded 50W power supply has many safety certifications and meets EMC standards such as UL 60950 1 (2nd ed.), IEC 60950 1 (2nd ed.), and EN 61000.

Technical Overview

Type Closed
Wattage 50W
Input Voltage 90 ~ 264
Voltage 5, 12, 15, 24, 48
Current 0 ~ 8A
Dimensions 99 x 82 x 35 mm
Output Single
Certifications UL, cUL, CE, CB

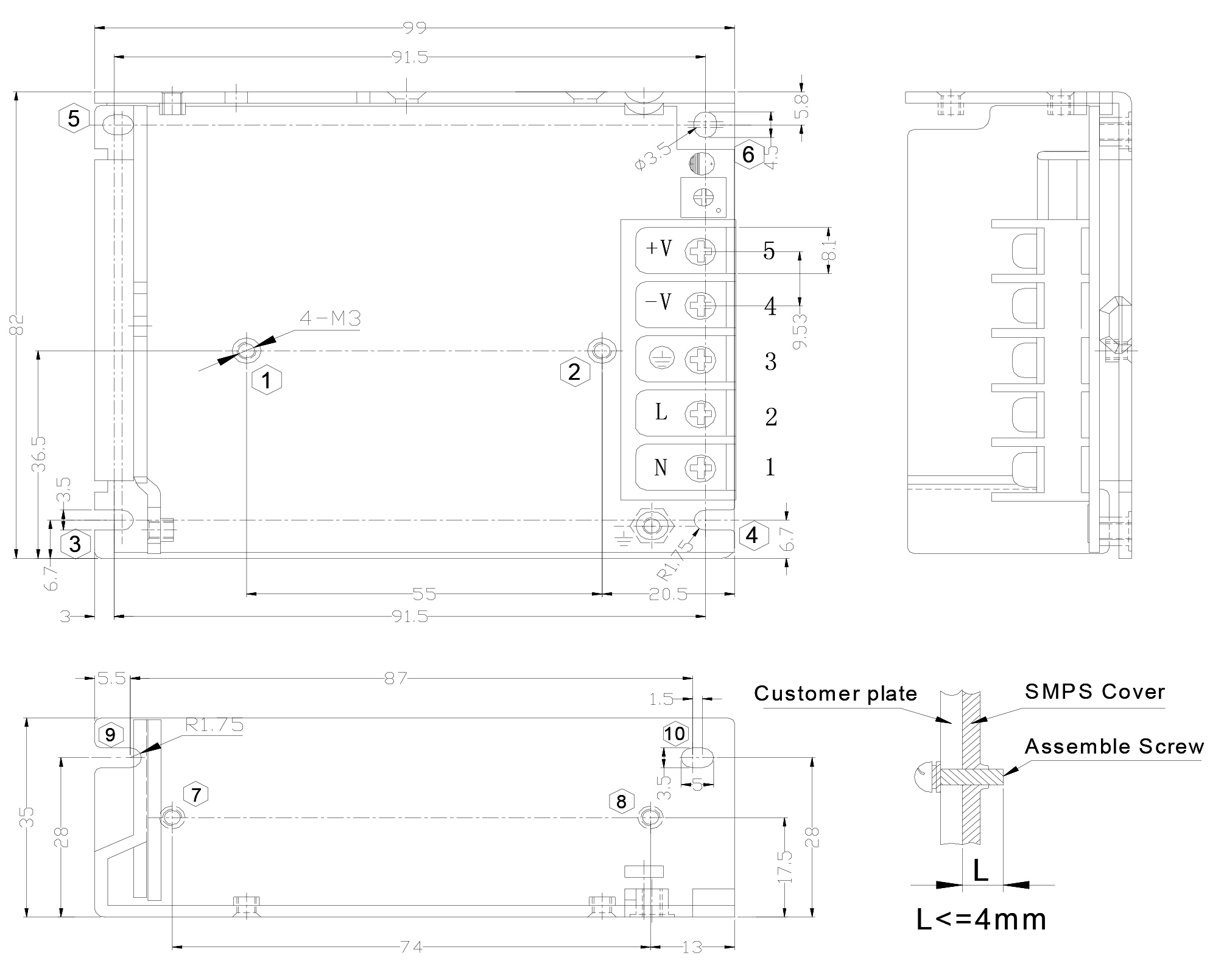

HDP-50 Mechanical Specs
