HDP-O-45 Series

45W Open Frame Power Supply

  • Image

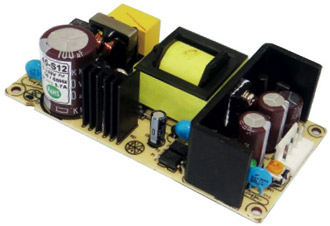

    HDP-O-45 Series - 45W Open Frame AC DC Power Supply

Request a Quote

45W Single Output Open Frame AC-DC Power Supply

The HDP-O-45 series is a 45 watt open frame embedded power supply. This switching power supply is available in 12V, 24V, and 48V DC output. The HDP-O-45 series features high efficiency, long life, and high reliability. Output protections include over load, over voltage, over power, and shorted circuit protections. This embedded 45W power supply offers safety certifications and EMC standards including UL 60950 1 and EN 61000.

Technical Overview

Type Open
Wattage 45W
Input Voltage 90 ~ 264
Voltage 12, 24, 48
Current 0 ~ 3.7A
Dimensions 101.6 x 51 x 28 mm
Output Single
Certifications UL, cUL, CE, CB

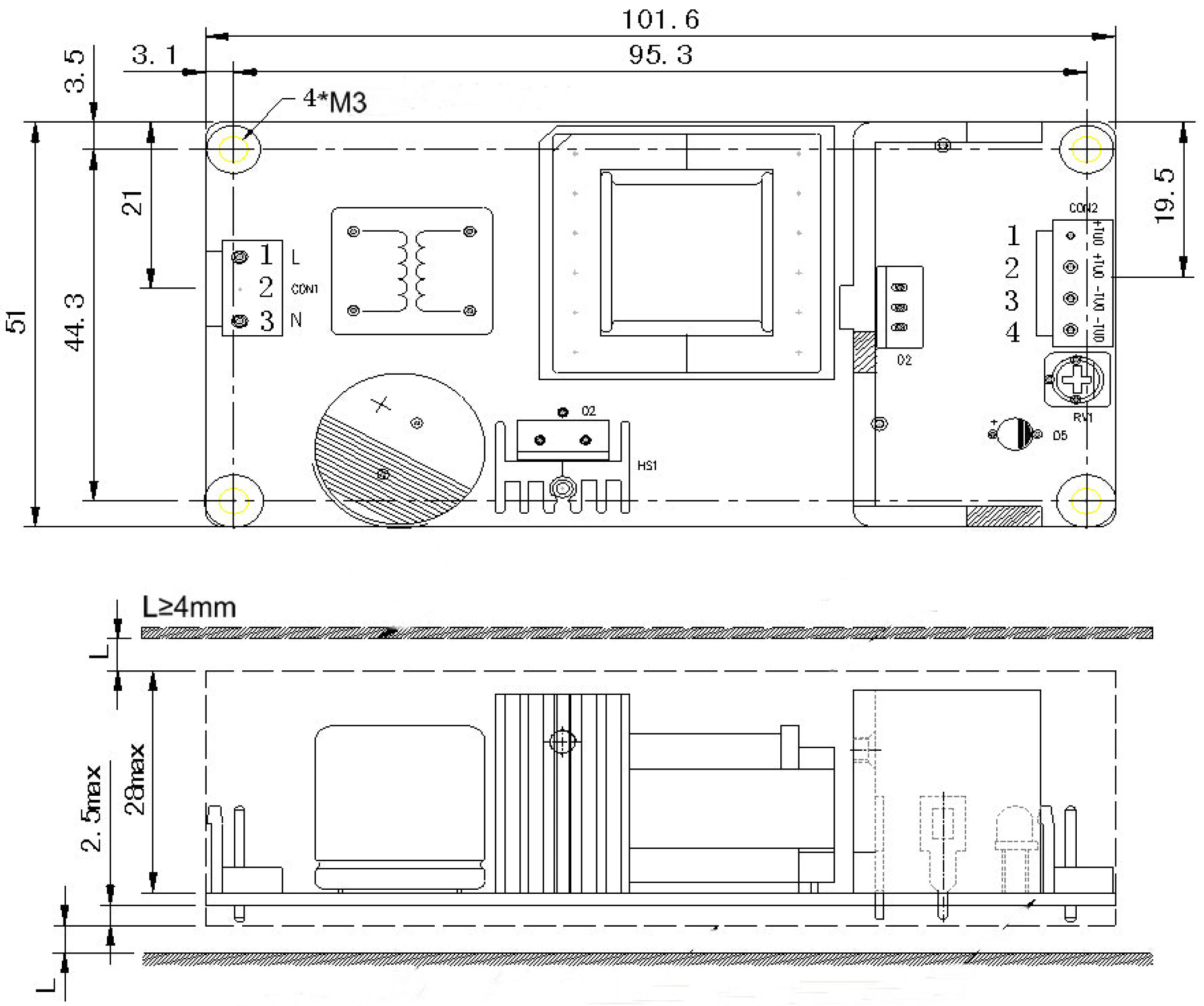

HDP-O-45 Mechanical Specs
