HDP-O-35 Series

35W Open Frame Power Supply

  • Image

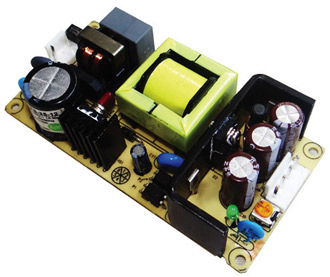

    HDP-O-35 35W Open Frame AC DC Power Supply

Request a Quote

35W Single Output Open Frame AC-DC Power Supply

Get reliable power with the HDP-O-35 series - an embedded 35 watt open frame power supply. This switching power supply is available in 5V, 12V, 24V, and 48V DC output. The HDP-O-35 features high efficiency and low power consumption. Output protections include over load, over voltage, over power, and shorted circuit protections. The embedded 35W power supply offers safety certifications and EMC standards including UL 60950 1, EN 60950 1, and EN 61000.

Technical Overview

Type Open
Wattage 35W
Input Voltage 90 ~ 264
Voltage 5, 12, 24, 48
Current 0 ~ 6A
Dimensions 101.6 x 50.8 x 24 mm
Output Single
Certifications UL, cUL, CE, CB

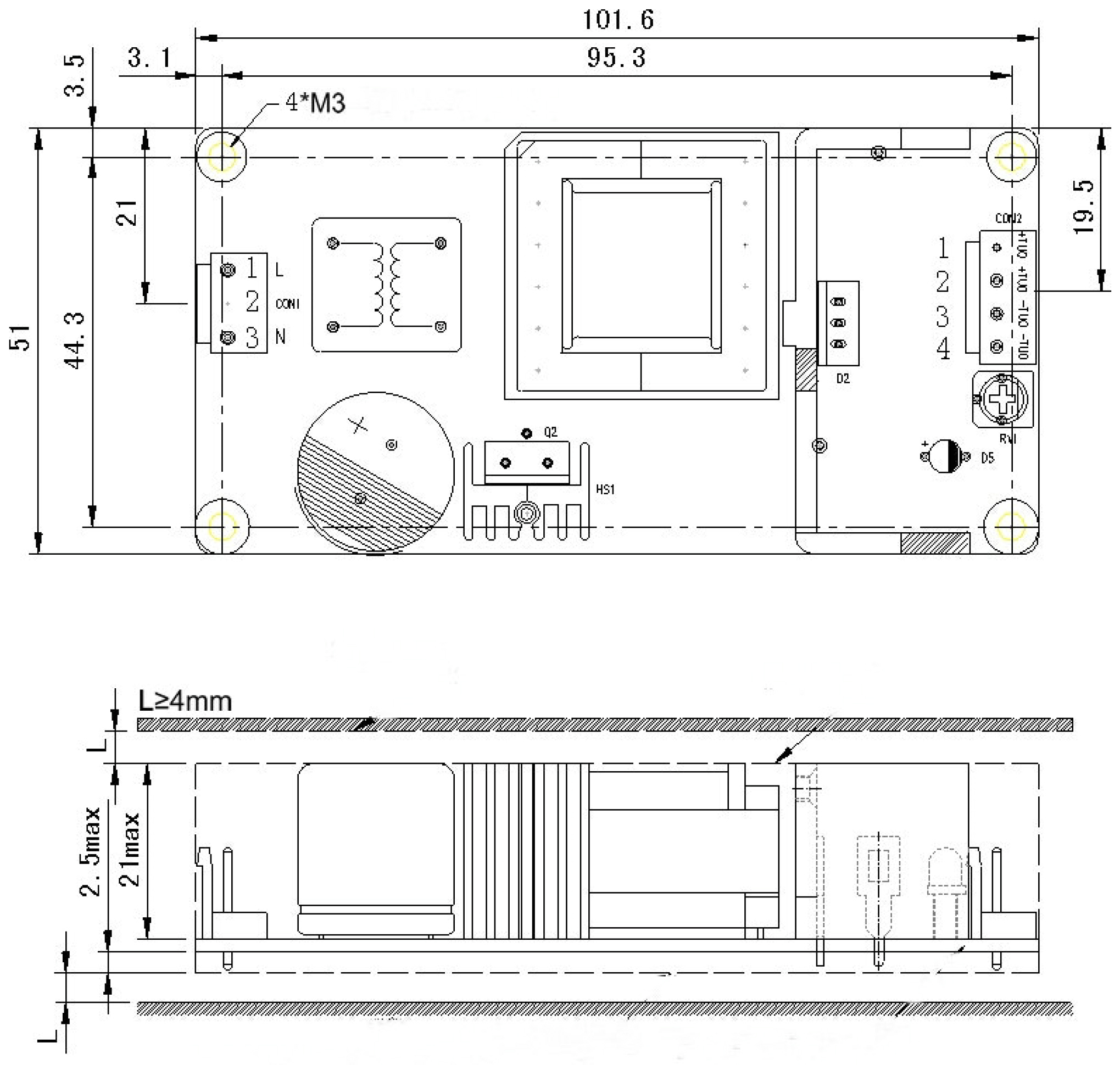

HDP-O-35 Mechanical Specs
