HDP-35 Series

35W Embedded Power Supply

  • Image

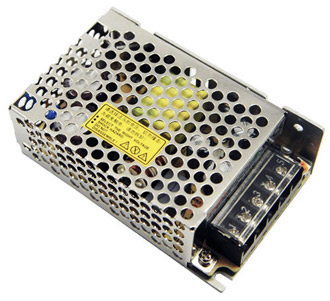

    HDP-35 Series 35W Single Output Power Supply

Request a Quote

35W Single Output Embedded AC-DC Power Supply

The HDP-35 series is a 35 watt embedded power supply with conformal coating. This switch mode power supply is available in 5V, 12V, 15V, 24V, and 48V DC output. The HDP-35 series features high efficiency, high power density, long life, and high reliability. Output protections include over load, over voltage, and shorted circuit protections. The HDP-35 series offers safety certifications and meets EMC standards including UL 60950 1 (2nd ed.), IEC 60950 1 (2nd ed.), and EN 61000.

Technical Overview

Type Closed
Wattage 35W
Input Voltage 90 ~ 264
Voltage 5, 12, 15, 24, 48
Current 0 ~ 6A
Dimensions 101.6 x 63.5 x 33 mm
Output Single
Certifications UL, cUL, CE, CB

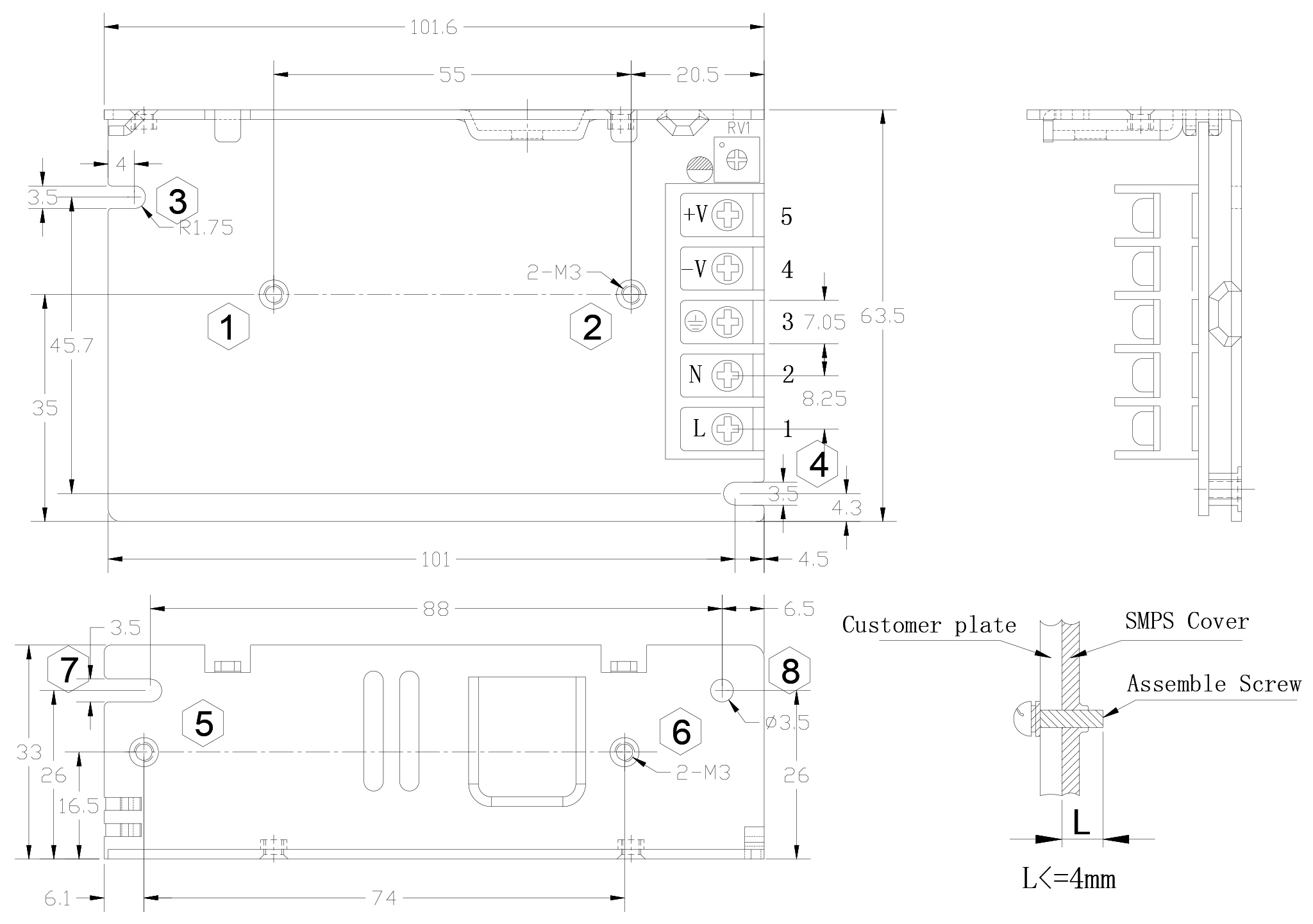

HDP-35 Mechanical Specs
