HDP-320A Series

320W Embedded Power Supply

  • Image
    HDP-240 Series

Request a Quote

320W Single Output Enclosed AC-DC Power Supply

The HDP-320A series is a highly efficient, 320 watt enclosed frame power supply with built-in cooling fan and active PFC. This switch mode power supply is available in 5V, 12V, 24V, and 48V DC outputs. This power supply is suitable for critical applications with its conformal coating on both sides of the PCB and operating altitude up to 5000m. The embedded 320W power supply includes UL 60950 1 and IEC 60950 1 safety certifications.

Technical Overview

Type Closed
Wattage 320W
Input Voltage 85 ~ 264
Voltage 5, 12, 24, 48
Current 0 ~ 55A
Dimensions 199 x 99 x 50 mm
Output Single
Certifications UL, cUL, CE, CB, w/PFC

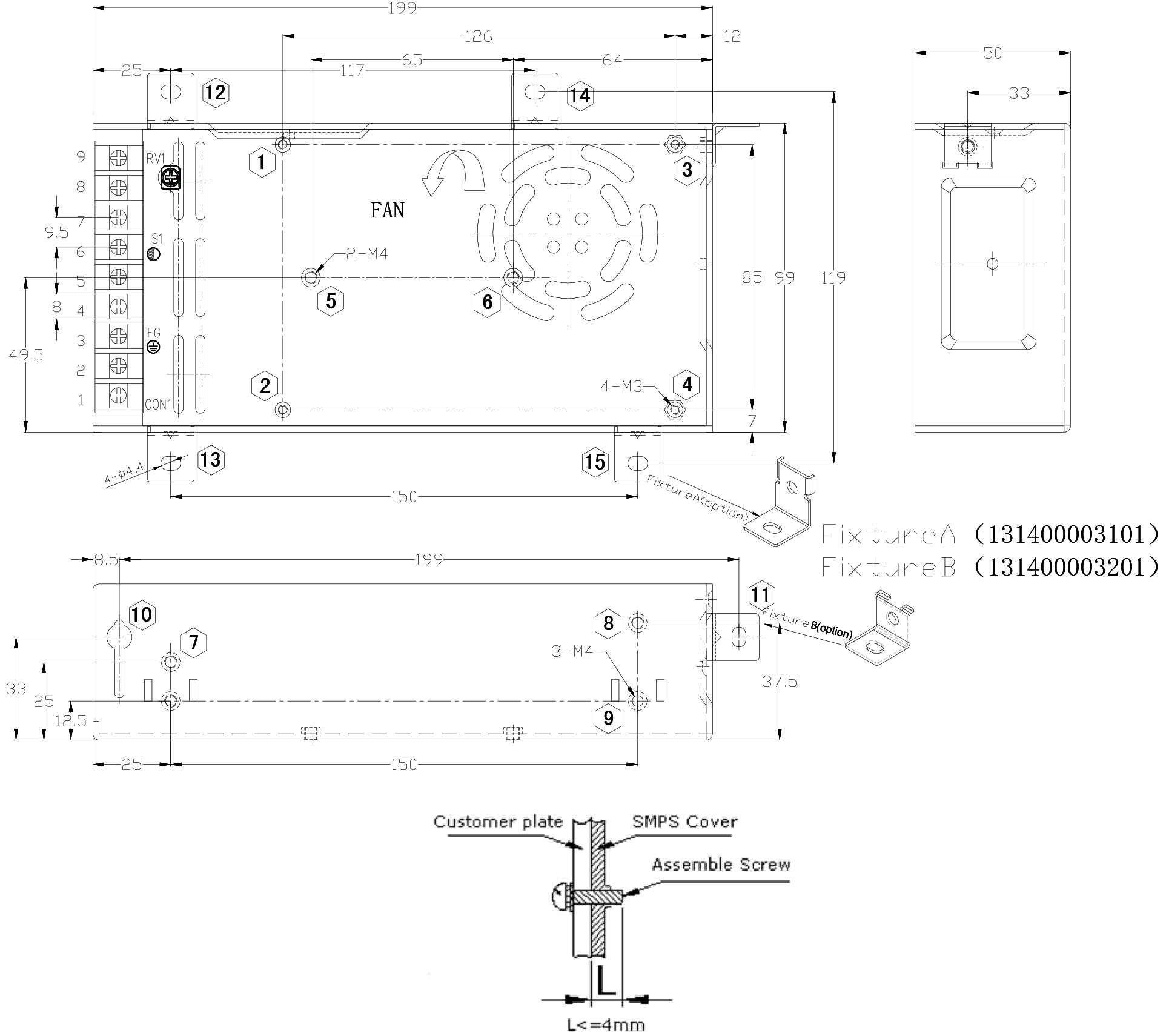

HDP-320A Mechanical Specifications
