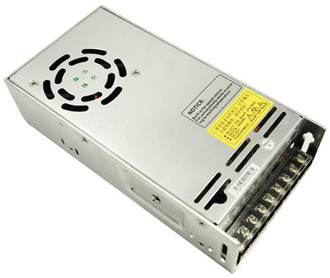

HDP-240 Series

240W Embedded Power Supply

  • Image
    HDP-240 Series

Request a Quote

240W Single Output Enclosed AC-DC Power Supply

The HDP-240 series is a highly efficient, 240 watt enclosed frame power supply with built-in cooling fan and active PFC. This switch mode power supply is available in 5V, 12V, 24V, and 48V DC output. This 240W embedded power supply has conformal coating on the PCB solder side. The HDP-240 series has many safety certifications and meets EMC standards including UL 60950 1 (2nd ed.), IEC 60950 1 (2nd ed.), EN 60950 1, and EN 61000.

Technical Overview

Type Closed
Wattage 240W
Input Voltage 90 ~ 264
Voltage 5, 12, 24, 48
Current 0 ~ 48A
Dimensions 199 x 99 x 50 mm
Output Single
Certifications UL, cUL, CE, CB, w/PFC

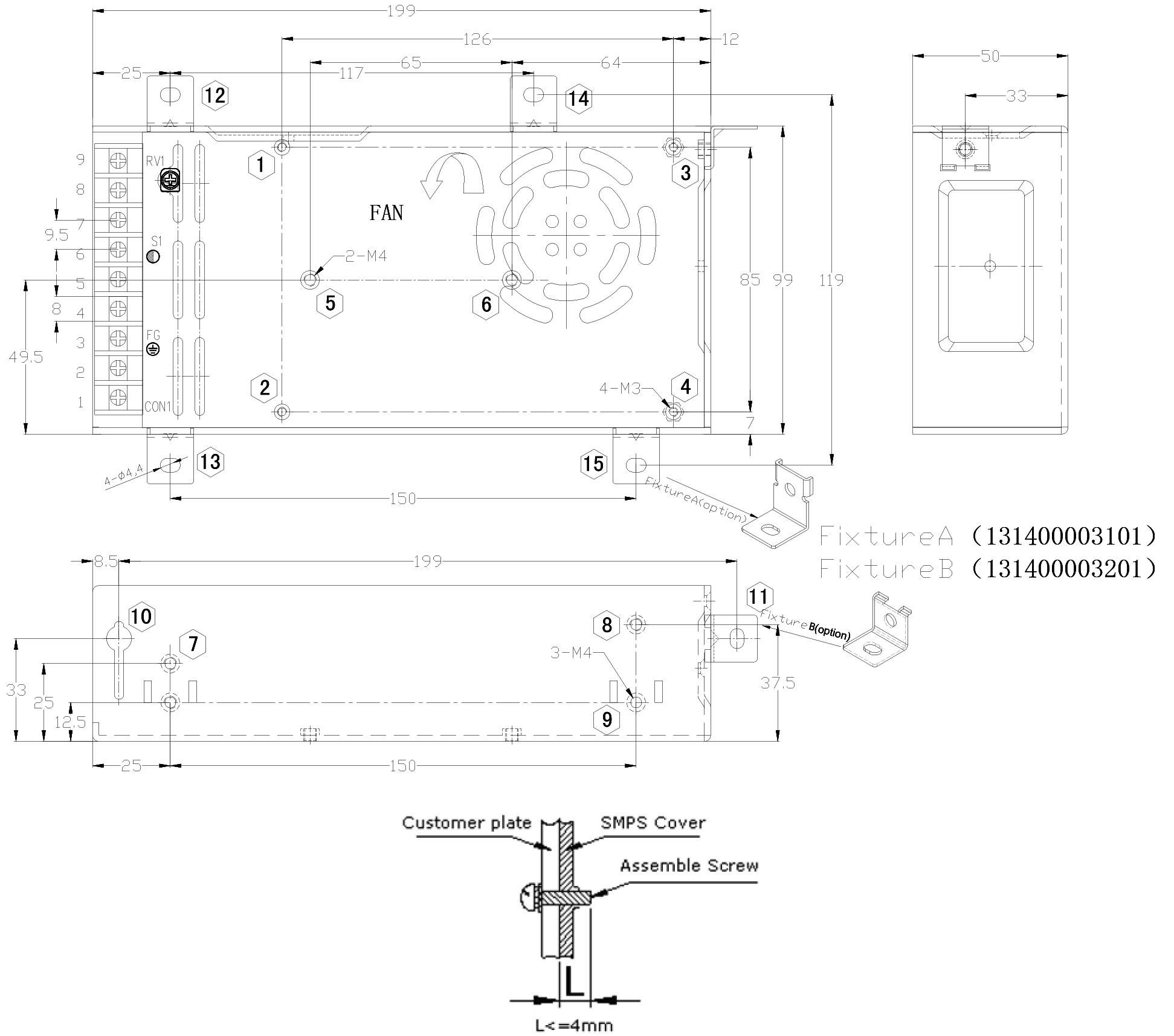

HDP-240 Mechanical Specs
