HDP-O-20 Series

20W Open Frame Power Supply

  • Image

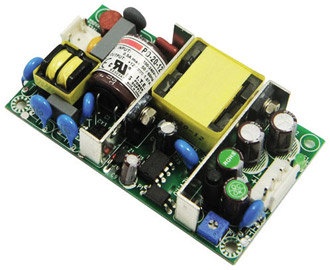

    HDP-O-20 20W Open Frame Power Supply

Request a Quote

20W Single Output Open Frame AC-DC Power Supply

The HDP-O-20 series is a 20 watt, fan-less, open frame embedded power supply. This switch mode power supply is available in 3.3V, 5V, 12V, 15V, 24V, and 48V DC output. The HDP-O-20 series features high efficiency and high reliability in a small, low profile form factor of 89 x 51 x 20mm. Output protections include over load, over voltage, and shorted circuit protections. This 20W open frame power supply is ideal for ITE applications with its many safety certifications and EMC standards such as UL 60950 1, EN 60950, and EN 61000.

Technical Overview

Type Open
Wattage 20W
Input Voltage 90 ~ 264
Voltage 3.3, 5, 12, 15, 24, 48
Dimensions 89 x 51 x 20 mm
Output Single
Certifications UL, cUL, CE, CB

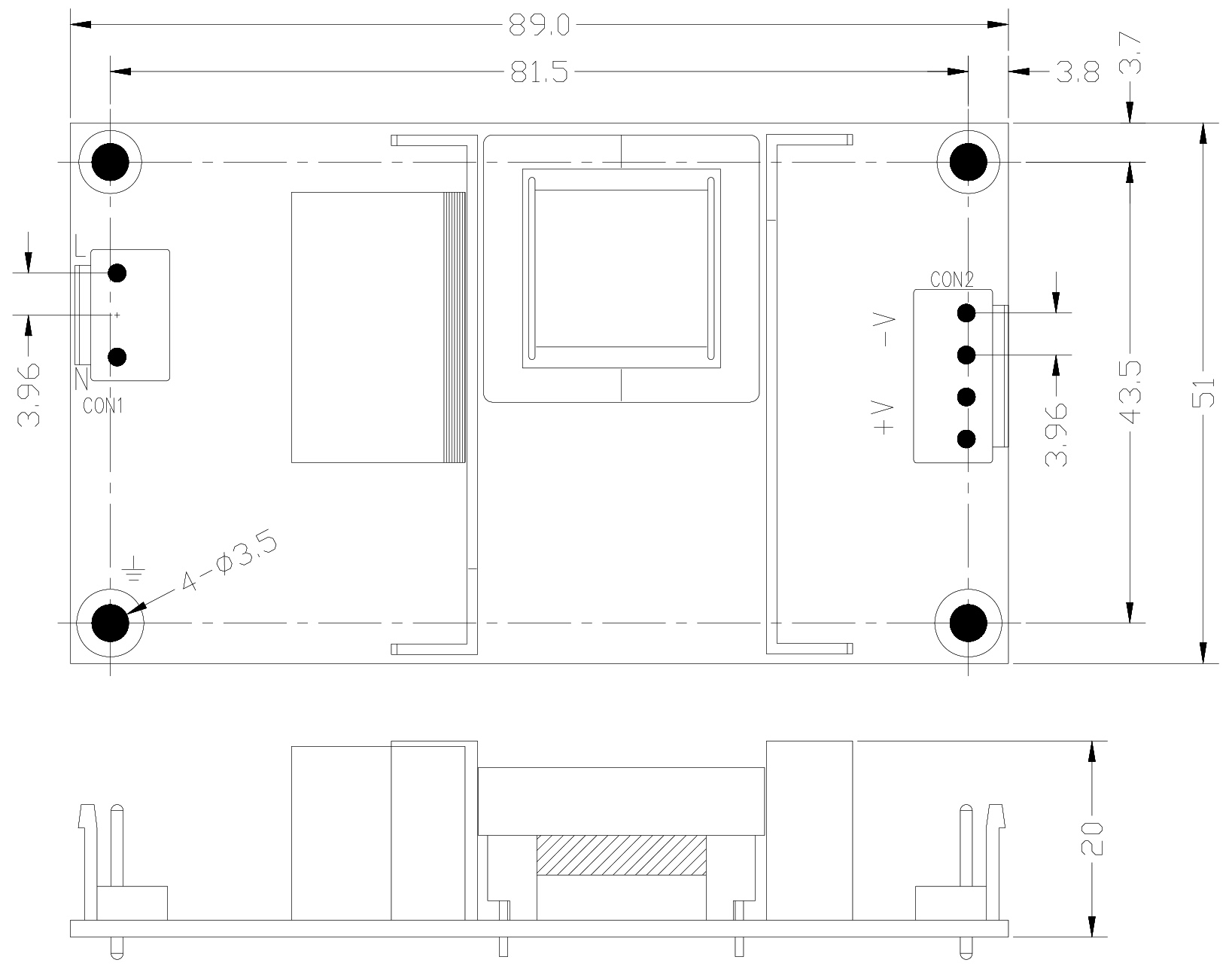

HDP-O-20 Mechanical Specs
