HDP-O-200 Series

200W Open Frame Power Supply

  • Image
    HDP-O-200 200W Embedded Power Supply Series

Request a Quote

200W Single Output Embedded Power Supply with Active PFC

The HDP-O-200 series is a high efficient, 200 watt open frame power supply with active PFC in a 3" x 5" compact size. This switch mode power supply is available in 12V, 24V, and 48V DC outputs. This 200W switch mode power supply has safety certifications and meets EMC standards including UL 60950 1 and EN 61000.

Technical Overview

Type Open
Wattage 200W
Input Voltage 90 ~ 264
Voltage 12, 24, 48
Current 0 ~ 16.6A
Dimensions 128 x 76.5 x 34.6 mm
Output Single
Certifications UL, cUL, CE, CB

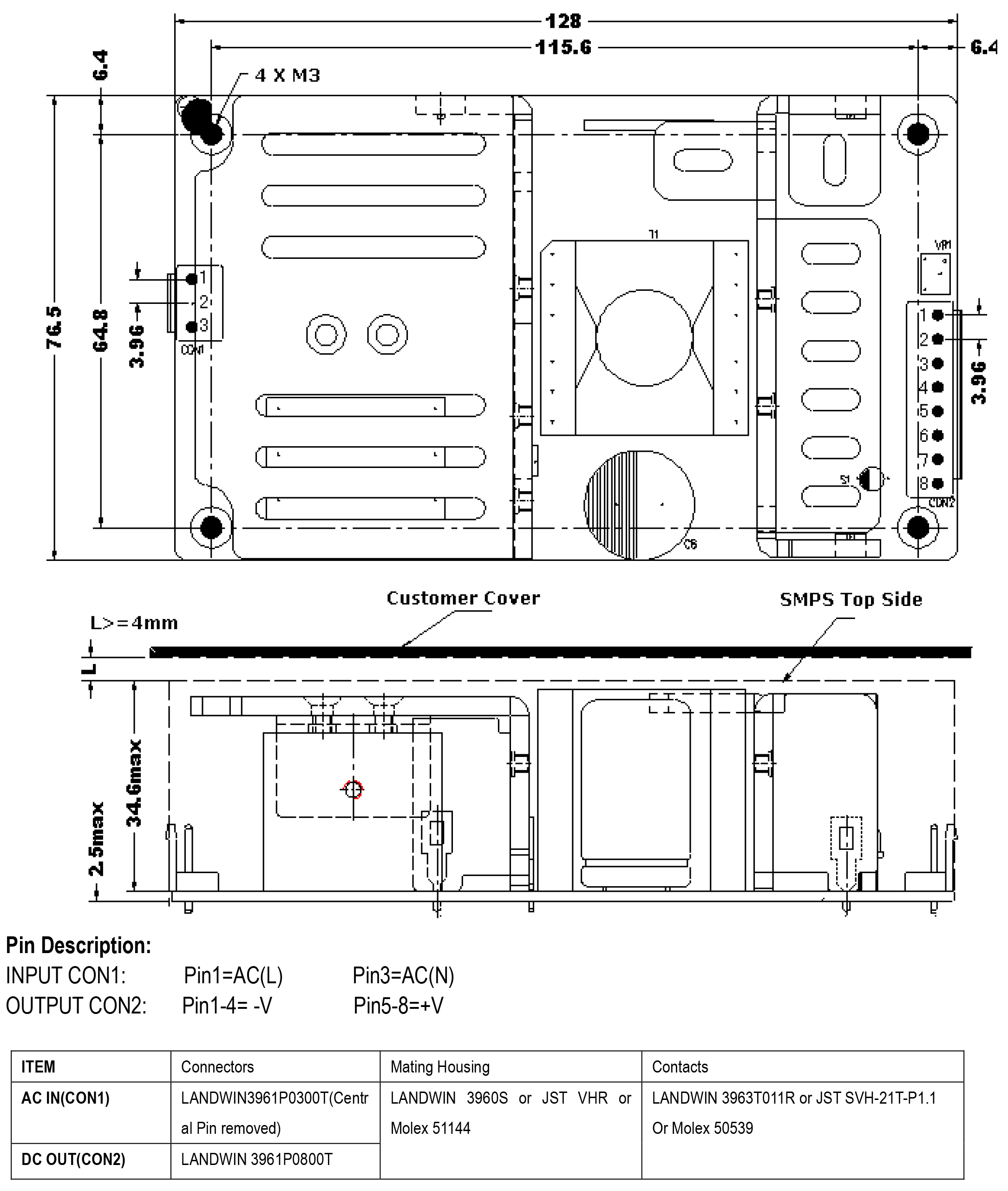

HDP-O-200 Mechanical Specs
