HDP-200B Series

200W Embedded Power Supply

  • Image
    HDP-200B Series

Request a Quote

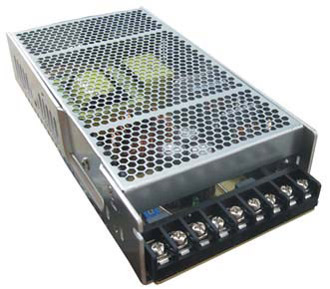

200W Single Output Enclosed AC DC Power Supply with Active PFC

The HDP-200B series is a high efficient, 200 watt enclosed frame power supply with built-in active PFC function. This switch mode power supply is available in 12V, 24V, and 48V DC outputs. This compact embedded power supply offers high power density, long life, and high reliability. This 200W power supply meets many safety and EMC standards including UL 60950-1 (2nd ed.) and IEC 60950 (2nd ed.).

Technical Overview

Type Closed
Wattage 200W
Input Voltage 90 ~ 264
Voltage 12, 24, 48
Current 0 ~ 16.7A
Dimensions 199 x 99 x 38 mm
Output Single
Certifications UL, cUL, CE, CB, w/PFC

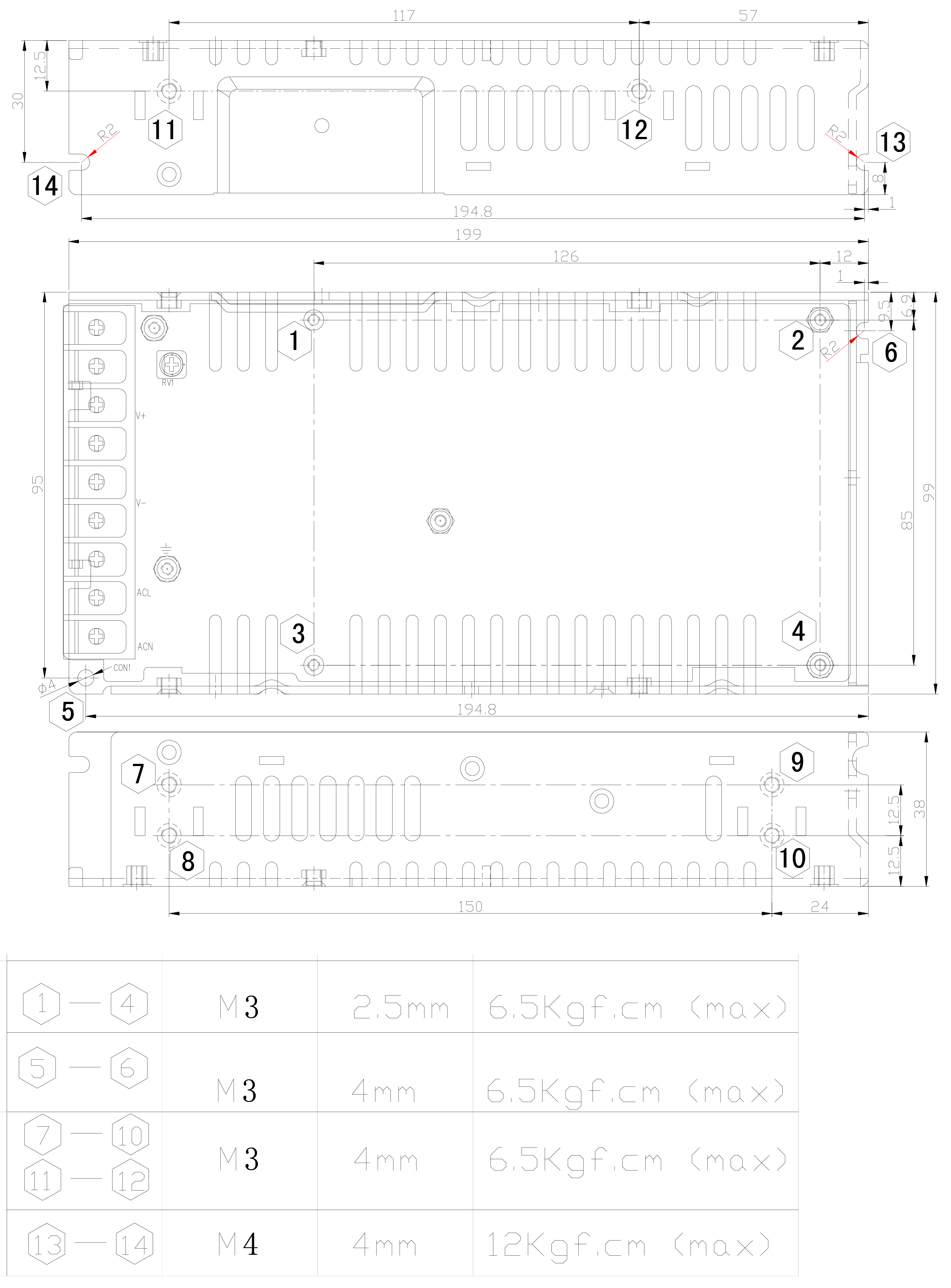

HDP-200B Mechanical Specifications
