HDP-200A Series

200W Embedded Power Supply

  • Image

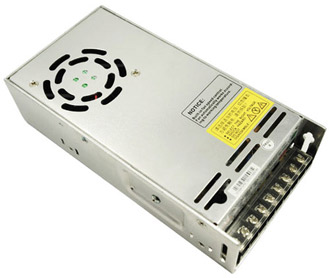

    HDP-200A Series 200W power supply

Request a Quote

200W Single Output Embedded AC-DC Power Supply with Active PFC and Built-in Fan

The HDP-200A series is a high efficient, 200 watt enclosed frame power supply with built-in cooling fan and active PFC. This switch mode power supply is available in 5V, 12V, 24V, and 48V DC outputs. This compact embedded power supply is suitable for critical applications with conformal coating on both sides of the PCB. The embedded 200W power supply has safety certifications and meets EMC standards including UL 60950 1, IEC 60950 1, and EN 61000.

Technical Overview

Type Closed
Wattage 200W
Input Voltage 90 ~ 264
Voltage 5, 12, 24, 48
Current 0 ~ 40A
Dimensions 199 x 99 x 50 mm
Output Single
Certifications UL, cUL, CE, CB, w/PFC

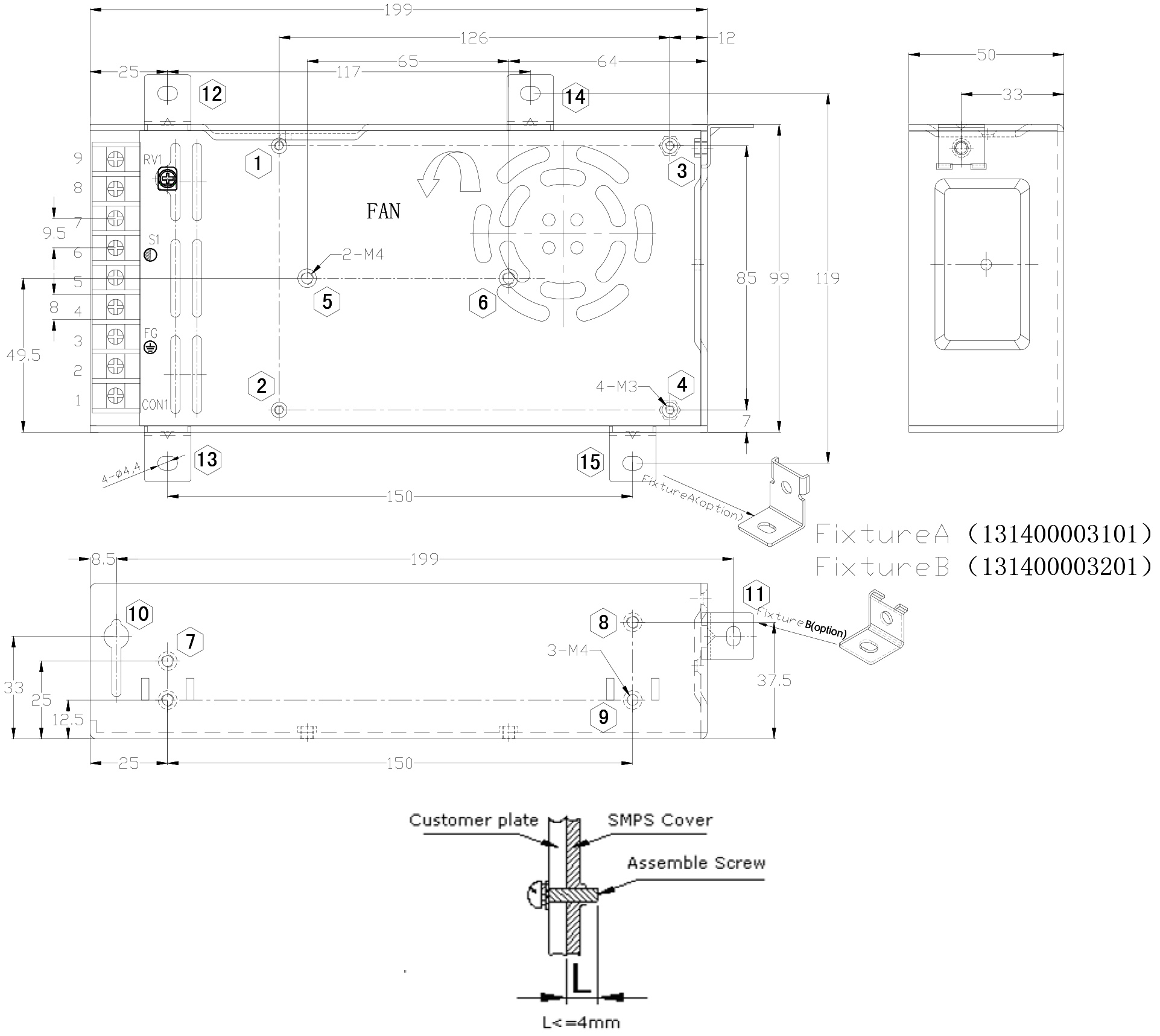

HDP-200A Mechanical Specs
