HDP-15 Series

15W Embedded Power Supply

  • Image

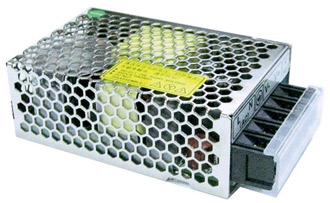

    HDP-15 Series 15W Embedded Power Supply

Request a Quote

15W Single Output Embedded AC-DC Power Supply

The HDP-15 series is a 15 watt, fanless, enclosed-case embedded power supply with conformal coating. This switch mode power supply is available in 3.3V, 5V, 12V, 15V, and 24V DC output. The HDP-15 series features high power density, high efficiency, long life and high reliability. Output protections include over load, over voltage, and shorted circuit protections. The 15W embedded power supply meets many safety certifications and EMC standards including UL 60950 1 (2nd ed.), IEC 60950 1, and EN 61000.

Technical Overview

Type Closed
Wattage 15W
Input Voltage 88 ~ 264
Voltage 3.3, 5, 12, 15, 24
Current 0 ~ 4A
Dimensions 79 x 51 x 28 mm
Output Single
Certifications UL, cUL, CE, CB

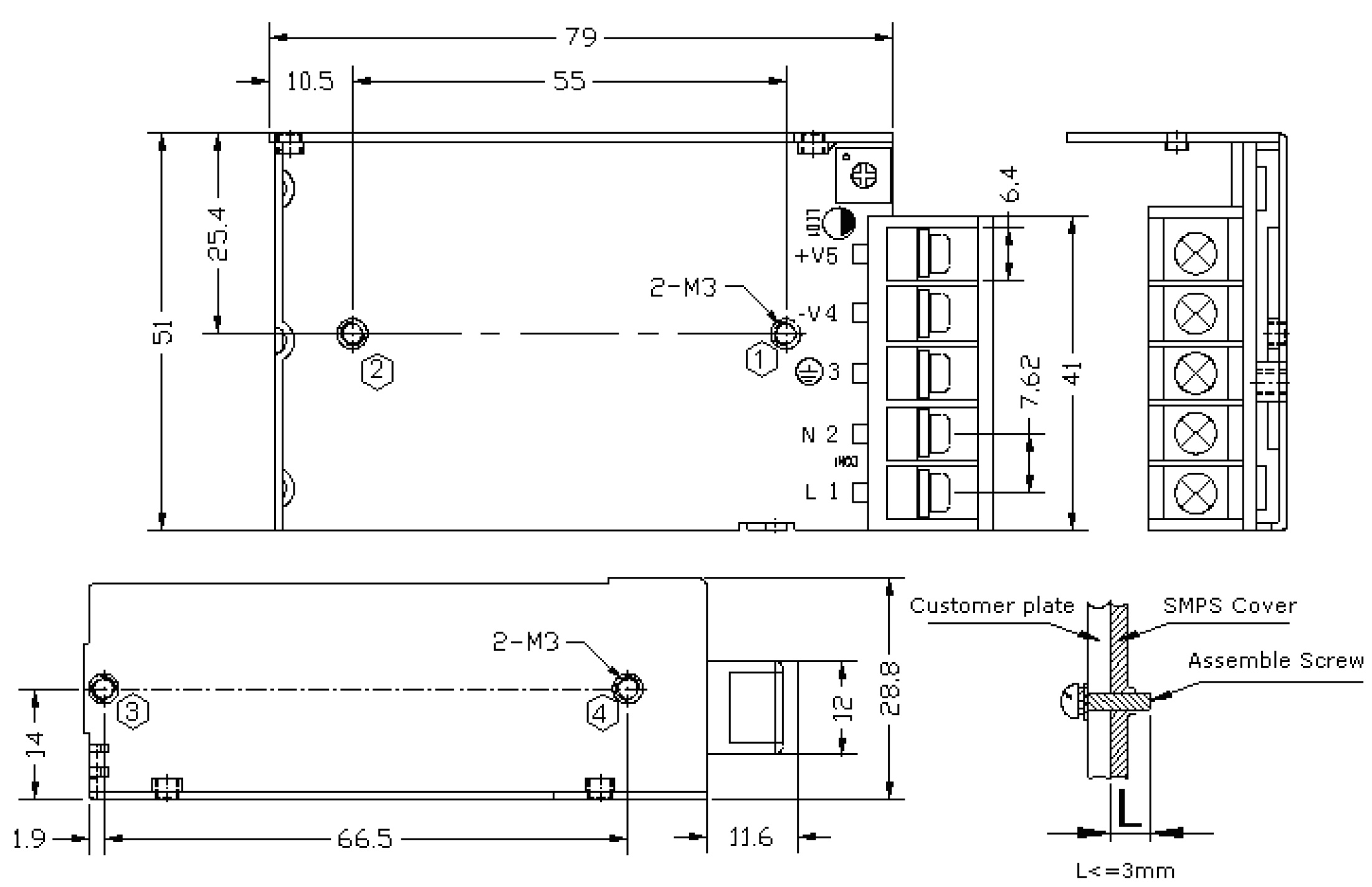

HDP-15 Mechanical Specs
