HDP-150C Series

150W Embedded Power Supply

  • Image
    HDP-150C Series: 150W Embedded Power Supply

Request a Quote

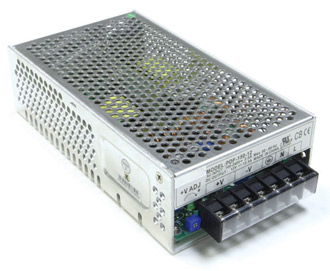

150W Single Output Embedded AC-DC Power Supply

The HDP-150C series is an enclosed 150 watt power supply with built-in active PFC function. This switch mode power supply is available in 5V, 12V, 15V, 24V, 36V and 48V DC outputs and features high efficiency, long life and high reliability. The embedded 150W power supply includes over load, over voltage, and short circuit protection. Safety certifications for the HDP-150C series include UL 60950-1 and EN 60950-1.

Technical Overview

Type Closed
Wattage 150W
Input Voltage 85 ~ 264
Voltage 5, 12, 15, 24, 36, 48
Current 0 ~ 30A
Dimensions 194 x 99 x 50 mm
Output Single
Certifications  UL, cUL, CE, CB, w/PFC

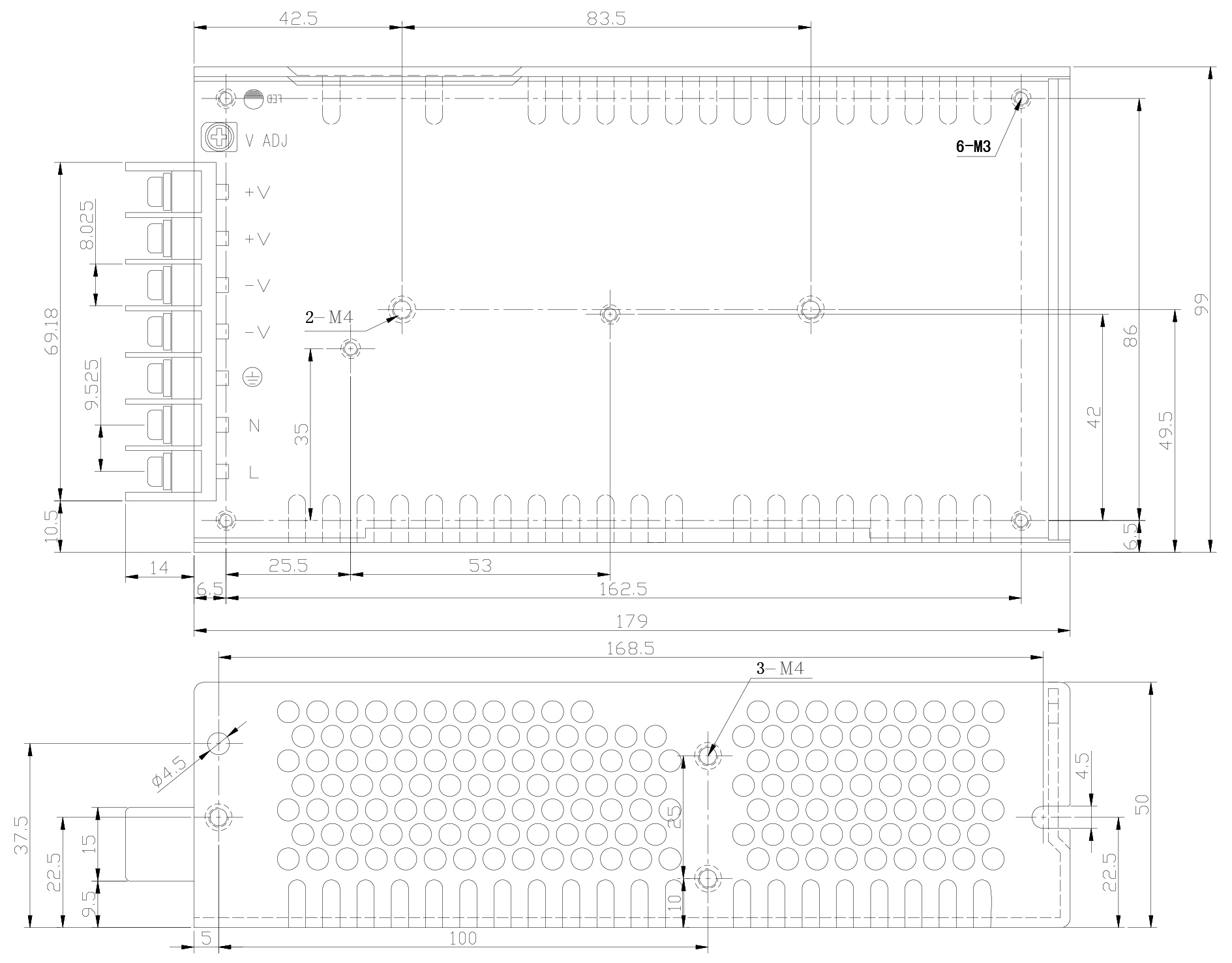

HDP-150C Mechanical Specs
