HDP-150B Series

150W Embedded Power Supply

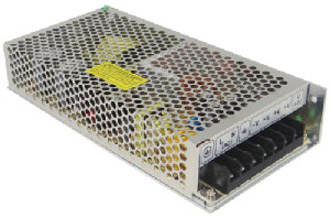

  • Image
    HDP-150B Series: 150W Embedded Power Supply

Request a Quote

150W Single Output Embedded AC-DC Power Supply with Selectable Input

The HDP-150B series is a 150 watt enclosed frame power supply with a 115VAC or 230VAC input (selectable by switch). This switching power supply is available in 5V, 12V, 15V, 24V, and 48V DC outputs and features high efficiency and high reliability. Output protections include over load, over voltage, and shorted circuit protections. The 150W embedded power supply has safety certifications such as UL 60950-1 and EMC standards including EN 61000.

Technical Overview

Type Closed
Wattage 150W
Input Voltage 88 ~ 264
Voltage 5, 12, 15, 24, 48
Current 0 ~ 26A
Dimensions 199 x 98 x 38 mm
Output Single
Certifications UL, cUL, CE

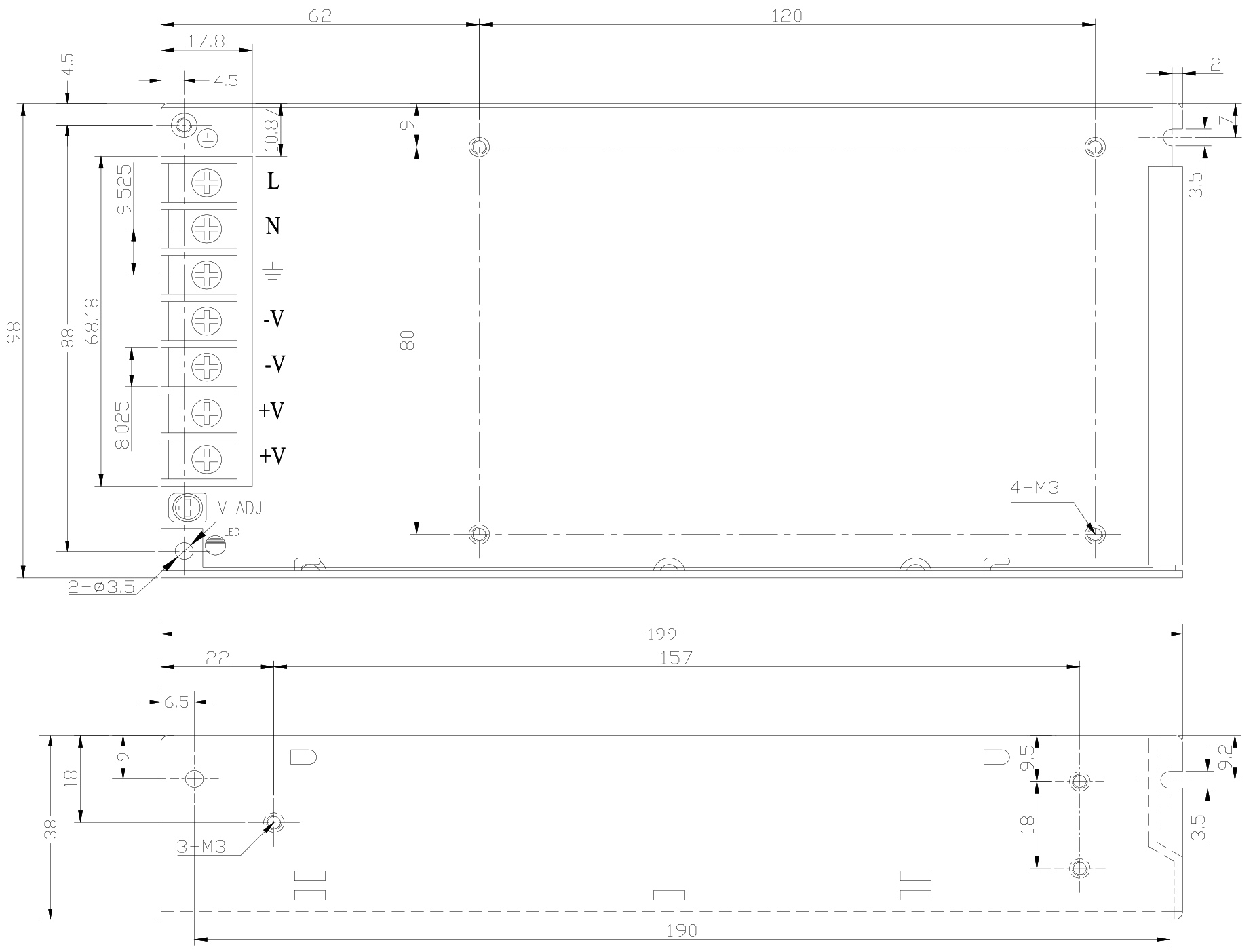

HDP-150B Mechanical Specs
