HDP-O-125 Series

125W Open Frame Power Supply

  • Image
    HDP-O-125 series - 125w open frame power supply

Request a Quote

125W Single Output Open Frame Power Supply

The HDP-O-125 series is an embedded 125 watt open frame power supply with built-in active PFC function. This switching power supply is available in 5V, 12V, 15V, 24V, and 48V DC outputs. The HDP-O-125 series features high power density, high efficiency, and high reliability. Output protections include over load, over voltage, and shorted circuit protections. This embedded 125W open frame power supply meets many safety certifications and EMC standards including UL 60950 1 and EN 61000.

Technical Overview

Type Open
Wattage 125W
Input Voltage 90 ~ 264
Voltage 5, 12, 15, 24, 48
Current 0 ~ 20A
Dimensions 127 x 76 x 30 mm
Output Single
Certifications UL, cUL, CE, CB, w/PFC

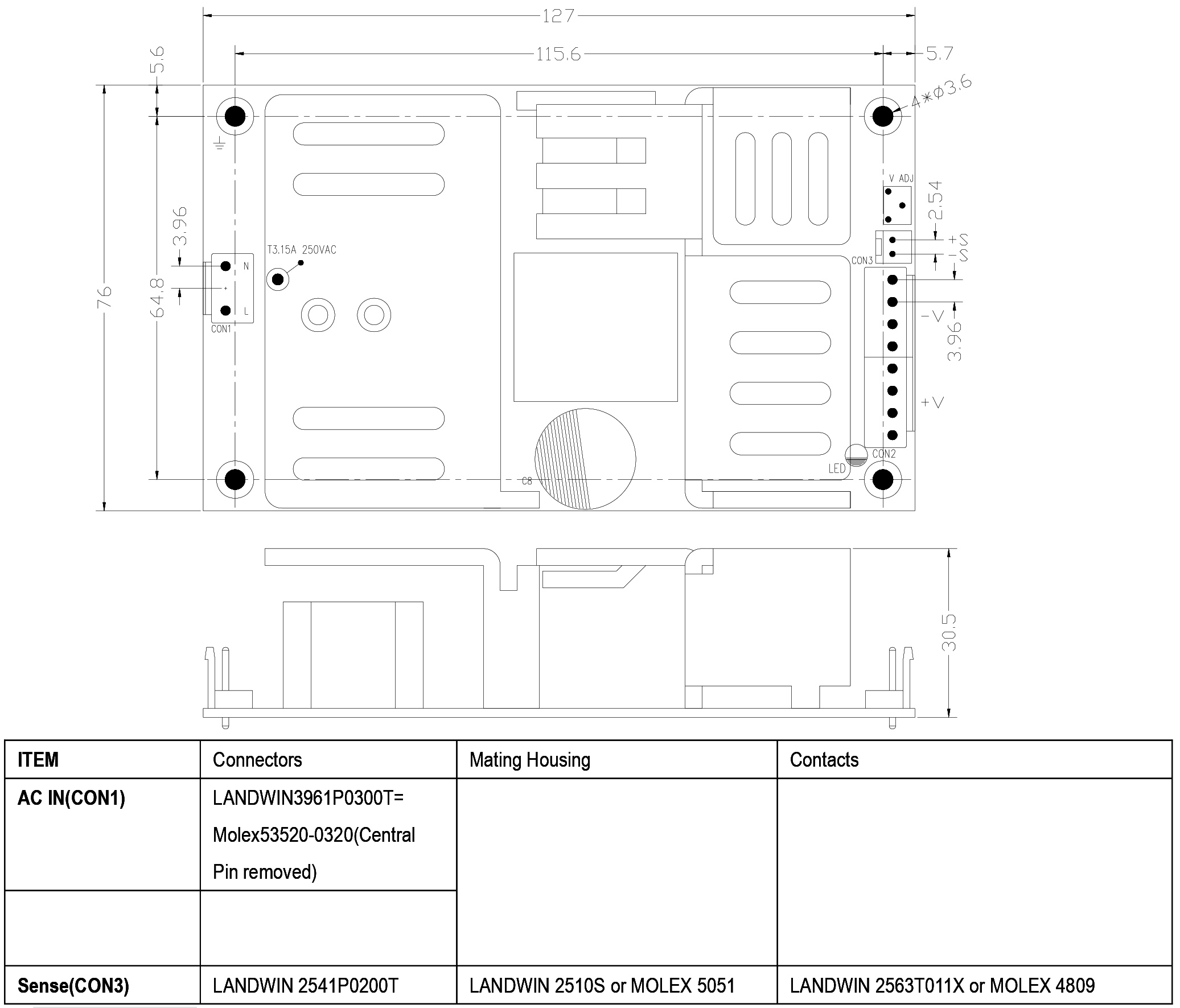

HDP-O-125 Mechanical Specs
