HDP-100 Series

100W Embedded Power Supply

  • Image

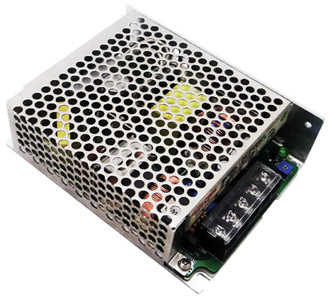

    HDP-100 Series: 100W Embedded Power Supply

Request a Quote

100W Single Output Embedded AC-DC Power Supply

The HDP-100 series is a 100 watt closed frame embedded power supply suitable for ITE applications within industrial environments. This switching power supply is available in 5V, 12V, 24V, and 48V DC outputs. The HDP-100 series features high power density, high efficiency, long life, and high reliability. Output protections include over load, over voltage, and shorted circuit protections. The 100W AC-DC power supply meets many safety certifications and EMC standards including UL 60950 1 (2nd ed.), EN 60950-1, and EN55022.

Technical Overview

Type Closed
Wattage 100W
Input Voltage 90 ~ 264
Voltage 5, 12, 24, 48
Current 0 ~ 20A
Dimensions 129 x 98.3 x 37.6 mm
Output Single
Certifications UL, cUL, CE, CB, w/ PFC



HDP-100 Mechanical Specs
