204G Series

204G Character LCD Module Series

  • Image

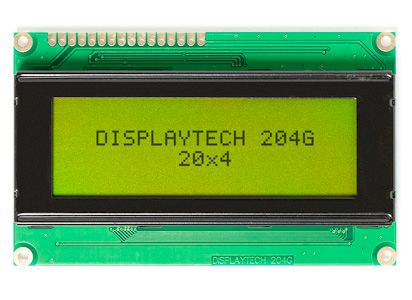

    204G-BC-BW
  • Image

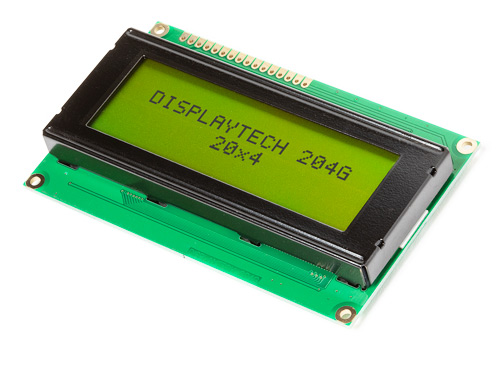

    204G-BC-BW side
  • Image

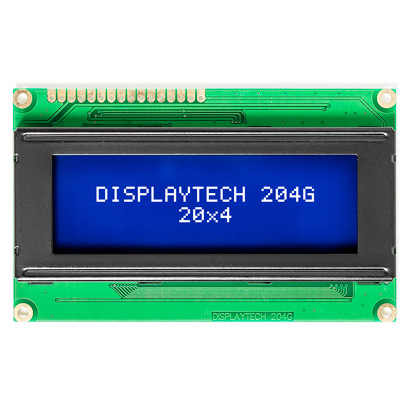

    204G-CC-BC-3LP
  • Image
    204G-CC-BC-3LP side

Request a Quote

20x4 Character LCD Display

The Displaytech 204G series is a lineup of 20x4 character LCD modules. These modules have a 98x60 mm outer dimension with 77x25.2 mm viewing area on the display. The 204G 20x4 LCD displays are available in STN or FSTN LCD modes with or without an LED backlight. The backlight color options include yellow green, white, blue, pure green, or amber color. Get a free quote direct from Displaytech for a 20x4 character LCD display from the 204G series.

Technical Overview

Display Format 20 Characters x 4 Lines
Dot Matrix (w x h) 5 x 8 Dots
Character Size (w x h) 2.95 x 4.75 mm
Character Pitch (w x h) 3.55 x 5.35 mm
LCD Driver IC Sitronix ST7066U (or equivalent)
Interface 4-bit Parallel and 8-bit Parallel
LCD Module Dimensions (w x h x d) 98 x 60 x 13.6 (MAX) mm
Viewing Area (w x h) 77 x 25.2 mm
Dot Size (w x h) 0.55 x 0.55 mm
Dot Pitch (w x h) 0.6 x 0.6 mm
Driving Method 1/16 Duty
Operating Temperature -20 ~ 70°C
