164G Series

164G Character LCD Module Series

  • Image

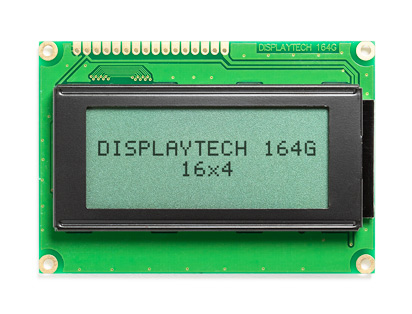

    164G FC BW-3LP
  • Image

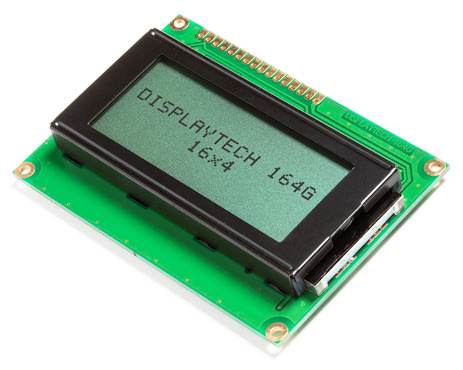

    164G FC BW-3LP side

Request a Quote

16x4 Character LCD Display

The Displaytech 164G series is a lineup of 16x4 character LCD modules. These modules have an 87x60 mm outer dimension with 62x24 mm viewing area on the display. The 164G 16x4 LCD displays are available in STN or FSTN LCD modes with or without an LED backlight. The backlight color options include yellow green, white, blue, pure green, or amber color. Get a free quote direct from Displaytech for a 16x4 character LCD display from the 164G series.

Technical Overview

Display Format 16 Characters x 4 Lines
Dot Matrix (w x h) 5 x 8 Dots
Character Size (w x h) 2.95 x 4.75 mm
Character Pitch (w x h) 3.55 x 5.35 mm
LCD Driver IC Sitronix ST7066U (or equivalent)
Interface 4-bit Parallel and 8-bit Parallel
LCD Module Dimensions (w x h x d) 87 x 60 x 13.6 (MAX) mm
Viewing Area (w x h) 62 x 26 mm
Dot Size (w x h) 0.55 x 0.55 mm
Dot Pitch (w x h) 0.6 x 0.6 mm
Driving Method 1/16 Duty
Operating Temperature -20 ~ 70°C
