162J Series

162J Character LCD Module Series

  • Image
  • Image

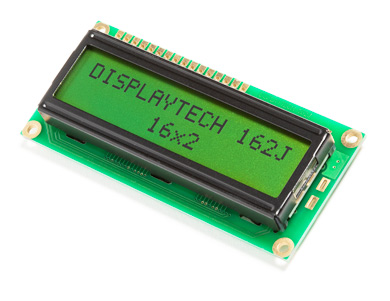

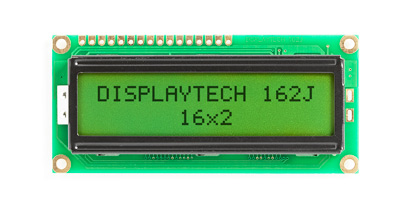

    162J-BC-BW side
  • Image
  • Image

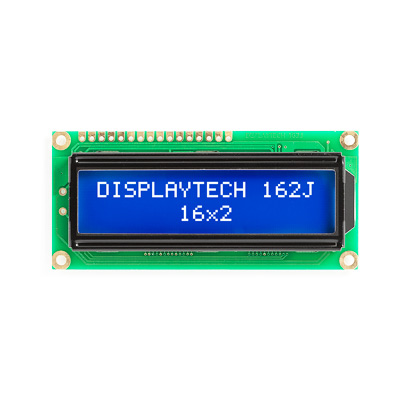

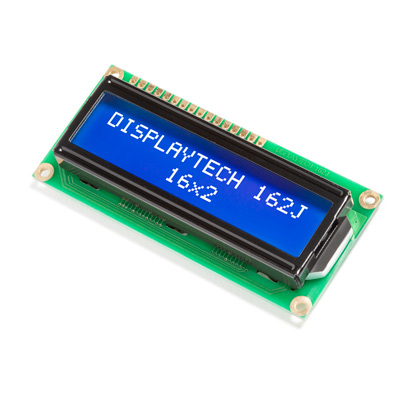

    162J-CC-BC-3LP side
  • Image
  • Image

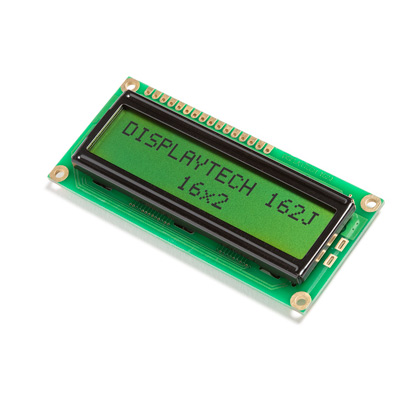

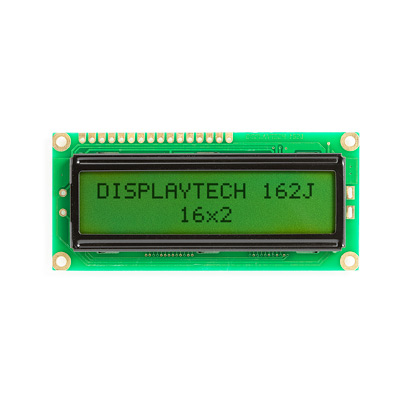

    162J-BA-BW side

Request a Quote

16x2 Character LCD Display

The Displaytech 162J series is a lineup of 16x2 character LCD modules. These modules have an 80x36 mm outer dimension with 66x16 mm viewing area on the display. The 162J 16x2 LCD displays are available in STN or FSTN LCD modes with or without an LED backlight. The backlight color options include yellow green, white, blue, pure green, or amber color. Get a free quote direct from Displaytech for a 16x2 character LCD display from the 162J series.

Technical Overview

Display Format 16 Characters x 2 Lines
Dot Matrix (w x h) 5 x 8 Dots
Character Size (w x h) 2.95 x 5.55 mm
Character Pitch (w x h) 3.55 x 5.95 mm
LCD Driver IC Sitronix ST7066U (or equivalent)
Interface 4-bit Parallel and 8-bit Parallel
LCD Module Dimensions (w x h x d) 80 x 36 x 13.2 (MAX) mm
Viewing Area (w x h) 66 x 16 mm
Dot Size (w x h) 0.55 x 0.65 mm
Dot Pitch (w x h) 0.6 x 0.7 mm
Driving Method 1/16 Duty
Operating Temperature -20 ~ 70°C
