162H Series

162H Character LCD Module Series

  • Image
  • Image

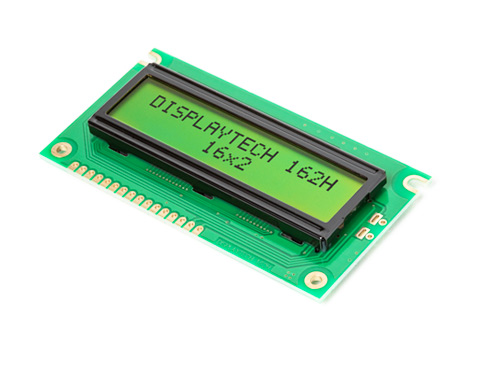

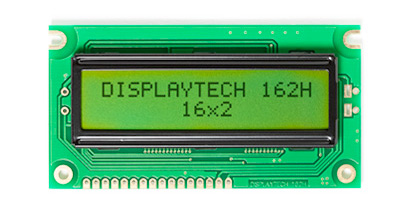

    162H-BA-BW side
  • Image
  • Image

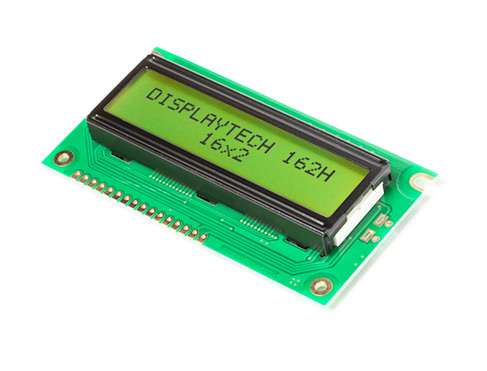

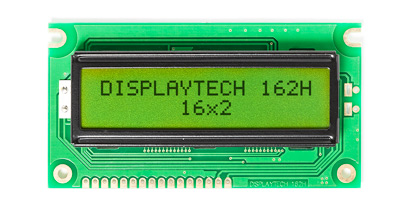

    162H-BC-BW side
  • Image
  • Image

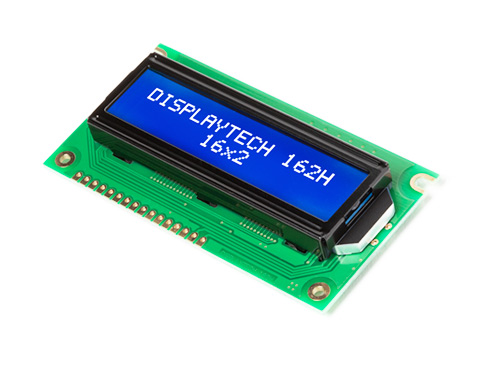

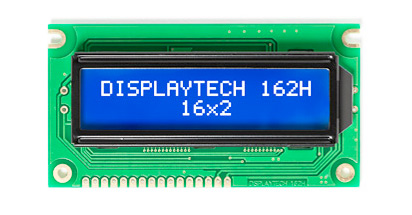

    162H-CC-BC-3LP side
  • Image
  • Image

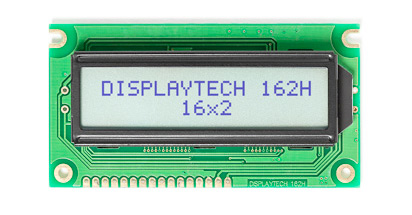

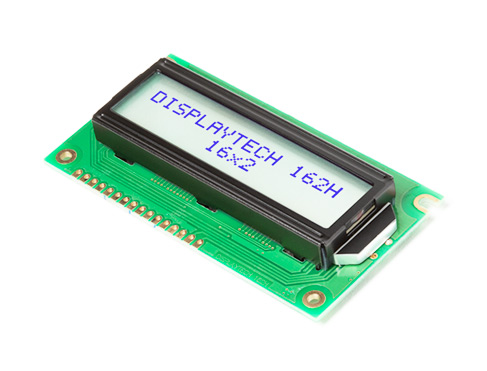

    162H-DC-BW-3LP side

Request a Quote

16x2 Character LCD Display

The Displaytech 162H series is a lineup of 16x2 character LCD modules. These modules have an 84x44 mm outer dimension with a 66x16 mm viewing area on the display. The 162H 16x2 LCD displays are available in STN or FSTN LCD modes with or without an LED backlight. The backlight color options include yellow green, white, blue, pure green, or amber color. Get a free quote direct from Displaytech for a 16x2 character LCD display from the 162H series.

Technical Overview

Display Format 16 Characters x 2 Lines
Dot Matrix (w x h) 5 x 8 Dots
Character Size (w x h) 2.95 x 5.55 mm
Character Pitch (w x h) 3.55 x 5.95 mm
LCD Driver IC Sitronix ST7066U (or equivalent)
Interface 4-bit Parallel and 8-bit Parallel
LCD Module Dimensions (w x h x d) 84 x 44 x 13.2 (MAX) mm
Viewing Area (w x h) 66 x 16 mm
Dot Size (w x h) 0.55 x 0.65 mm
Dot Pitch (w x h) 0.6 x 0.7 mm
Driving Method 1/16 Duty
Operating Temperature -20 ~ 70°C
