162GCOG Series

16x2 Chip on Glass LCD Display

  • Image
    162GCOG Series

Request a Quote

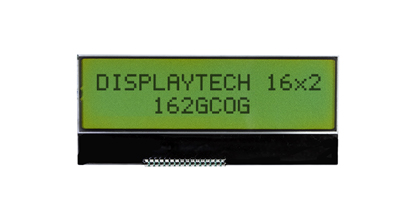

16x2 COG Character LCD Display

The Displaytech 162GCOG series is a lineup of 16x2 character chip-on-glass LCD modules. These modules have an 65x27.7 mm outer dimension with 61x15.7 mm viewing area on the display. The 162GCOG 16x2 LCD display series has the controller mounted directly onto the LCD glass. The chip-on-glass (COG) technology allows for a cost-effective system build since the display does not require a PCB. Get a quote directly from Displaytech for the 16x2 COG character LCD display from the 162GCOG series.

Technical Overview

Display Format 16 Characters x 2 Line
Dot Matrix (w x h) 5 x 8 Dots
LCD Driver IC Sitronix ST7032
Interface 6800 8-bit
LCD Module Dimensions (w x h x d) 65 x 27.7 x 2.7 mm
Viewing Area (w x h) 61 x 15.7 mm
Driving Method 1/16 Duty
Operating Temperature -20 ~ 70°C
