NRND

162F Series

16x2 Character LCD Display

  • Image
    162F

Request a Quote

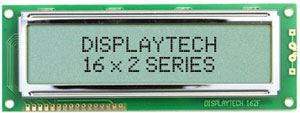

162F Character LCD Module Series

The 162F is our largest 16 character x 2 row chip on board (COB) alphanumeric display. These classic 16x2 LCD modules are available in a multitude of LCD and LED backlight color combinations to achieve the perfect look for your product.  Some of our most popular combinations are STN yellow-green LCD with yellow-green LED backlight, STN blue LCD with white LED backlight, and STN grey LCD with either blue, amber or pure green LED backlight.

Technical Overview

Status Not Recommended for New Design
Replacement LCD 162M
Display Format 16x2
Character Matrix (w x h) 5 x 8
Character Size (w x h) 4.84 x 9.66 mm
LCD Controller and Driver IC Sitronix ST7066U and ST7065C
Module Size (w x h x d) 122 x 44 x 11 mm (14 mm max with LED backlight)
View Area (w x h) 99 x 24 mm
Pixel Size 0.92 x 1.1 mm
Driving Method 1/16 Duty, 1/5 Bias
Operating Temperature -20 ~ 70°C
