161G Series

161G Character LCD Module Series

  • Image
  • Image

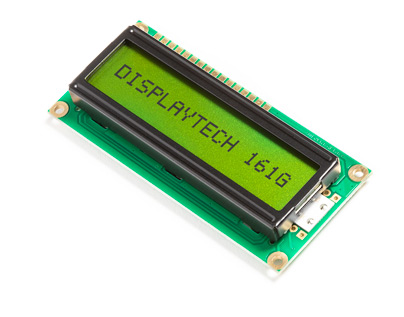

    161G angle view

Request a Quote

16x1 Character LCD Display, 80x36 mm

The Displaytech 161G series is a lineup of 16x1 character LCD modules. These modules have an 80x36 mm outer dimension with 66x16 mm viewing area on the display. The 161G 16x1 LCD displays are available in STN or FSTN LCD modes with or without an LED backlight. The backlight color options include yellow green, white, blue, pure green, or amber color. Get a free quote direct from Displaytech for a 16x1 character LCD display from the 161G series.

Technical Overview

Display Format 16 Characters x 1 Line
Dot Matrix (w x h) 5 x 8 Dots
Character Size (w x h) 3.07 x 6.56 mm
Character Pitch (w x h) 3.77 x 6.56 mm
LCD Driver IC Sitronix ST7066U (or equivalent)
Interface 4-bit Parallel and 8-bit Parallel
LCD Module Dimensions (w x h x d) 80 x 36 x 13.2 (MAX) mm
Viewing Area (w x h) 66 x 16 mm
Dot Size (w x h) 0.55 x 0.75 mm
Dot Pitch (w x h) 0.63 x 0.83 mm
Driving Method 1/16 Duty
Operating Temperature -20 ~ 70°C
