DT043CTFT-IPS

4.3" TFT IPS Display

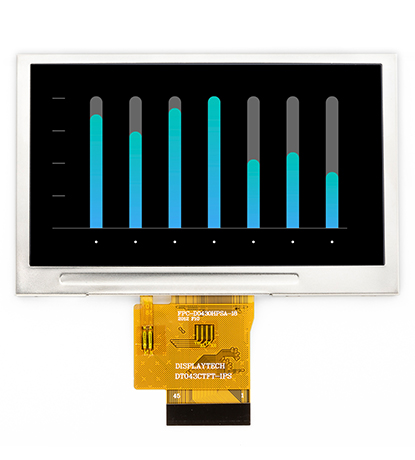

  • DT043CTFT-IPS
  • DT043CTFT-IPS-TS

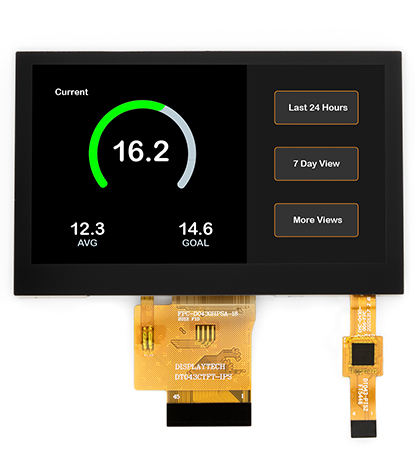

  • DT043CTFT-IPS-PTS

Request a Quote

4.3 inch IPS TFT Display with Touchscreen Options

The DT043CTFT-IPS series is a 4.3” TFT LCD with 480x272 resolution, in-plane switching technology (IPS), and optional resistive or capacitive touch panel. The IPS technology ensures consistent, true-to-life colors and remarkable visibility from every angle, making it the best choice for applications where viewing perspectives matter. This 4.3” LCD module has the Sitronix SC7283 system-on-chip driver IC which supports higher color resolution featuring 256-gray scale with true 8-bit DAC (digital to analog converter). The 4.3” TFT display is designed for consumer applications such as mobile navigation systems, video systems, and other electronic devices.

Technical Overview

Diagonal Screen Size 4.3 inch
Display Resolution 480 x 272
Viewing Angle ALL (IPS)
Interface Type SPI
Luminance 550 cd/m2
LCD Driver IC Sitronix SC7283
Module Size (w x h) 105.5 x 67.2 mm
Active Area (w x h) 95.04 x 53.86 mm
Operating Temperature -20 ~ 70°C
Touch Screen Options Resistive Touch Screen or Capacitive Touch Screen
PCAP Touch Controller FocalTech FT5x46
