DT043BTFT
4.3" Color TFT LCD Display
-
-
Request a Quote

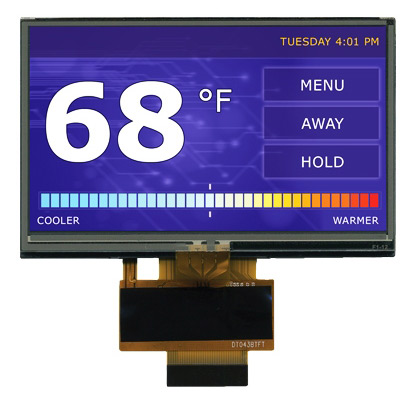

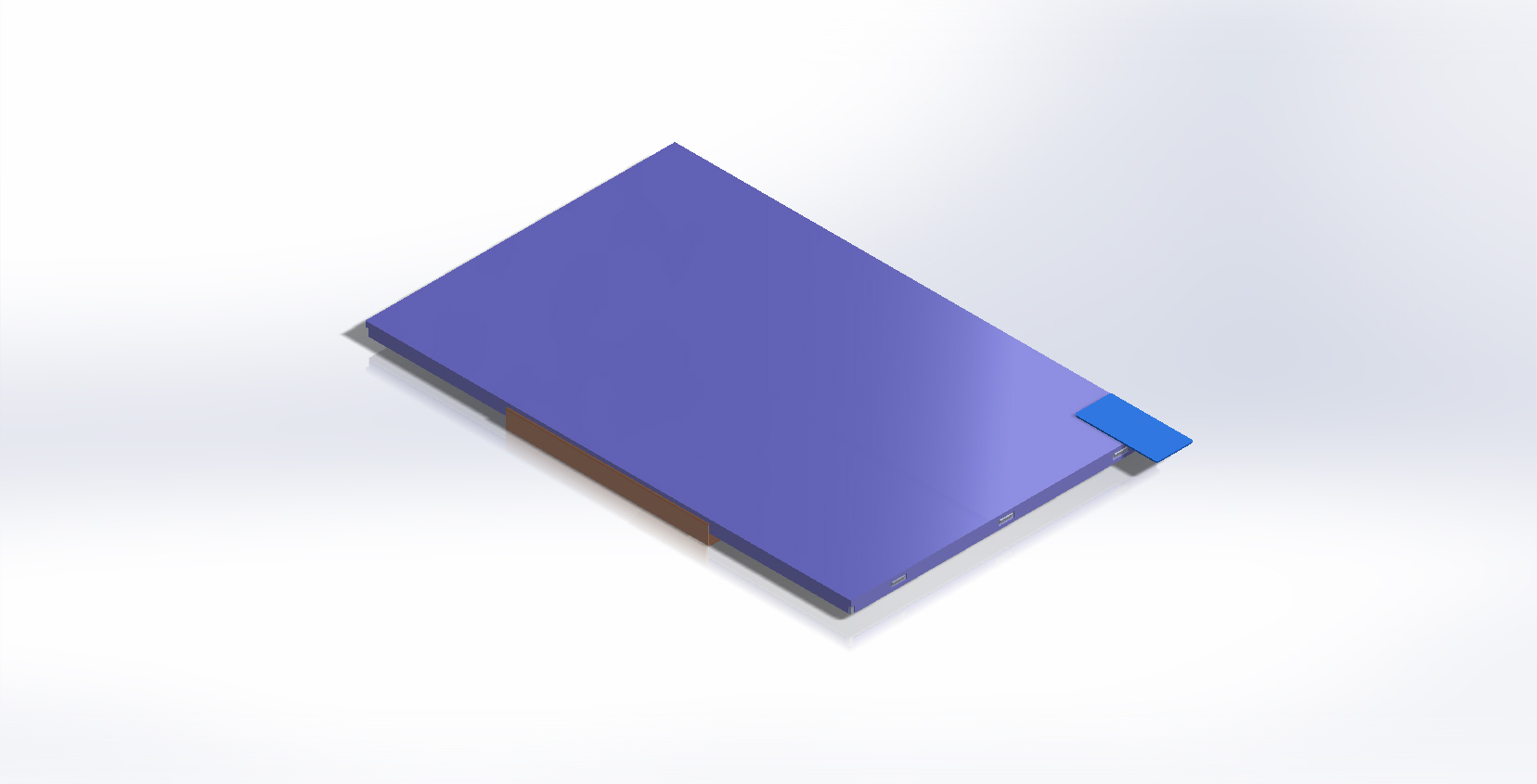

480x272 4.3" TFT Display with Optional Resistive or Capacitive Touch Screen
Enhance your product with the addition of our 4.3” TFT LCD module. This display module has 480 x 272 RGB resolution and uses the single-chip Himax HX8257-A digital driver. The TFT driver IC is interfaced via 24-bit digital display data and can support up to 16M colors to showcase crisp, detailed images and graphics. The 4.3" LCD display is available with a touch screen panel in either resistive (single-finger or stylus pressure) or capacitive (five-finger, multi-gesture) touch technology.
Technical Overview
| Diagonal Screen Size | 4.3 inch |
| Display Resolution | 480 x 272 |
| Viewing Angle | 6 o'clock |
| Interface Type | 24-bit Digital (RGB) |
| Brightness | 550 cd/m2 |
| LCD Driver IC | Himax HX8257 |
| Module Size (w x h) | 105.5 x 67.2 mm |
| Active Area (w x h) | 95.04 x 53.86 mm |
| Operating Temperature | -20 ~ 70°C |

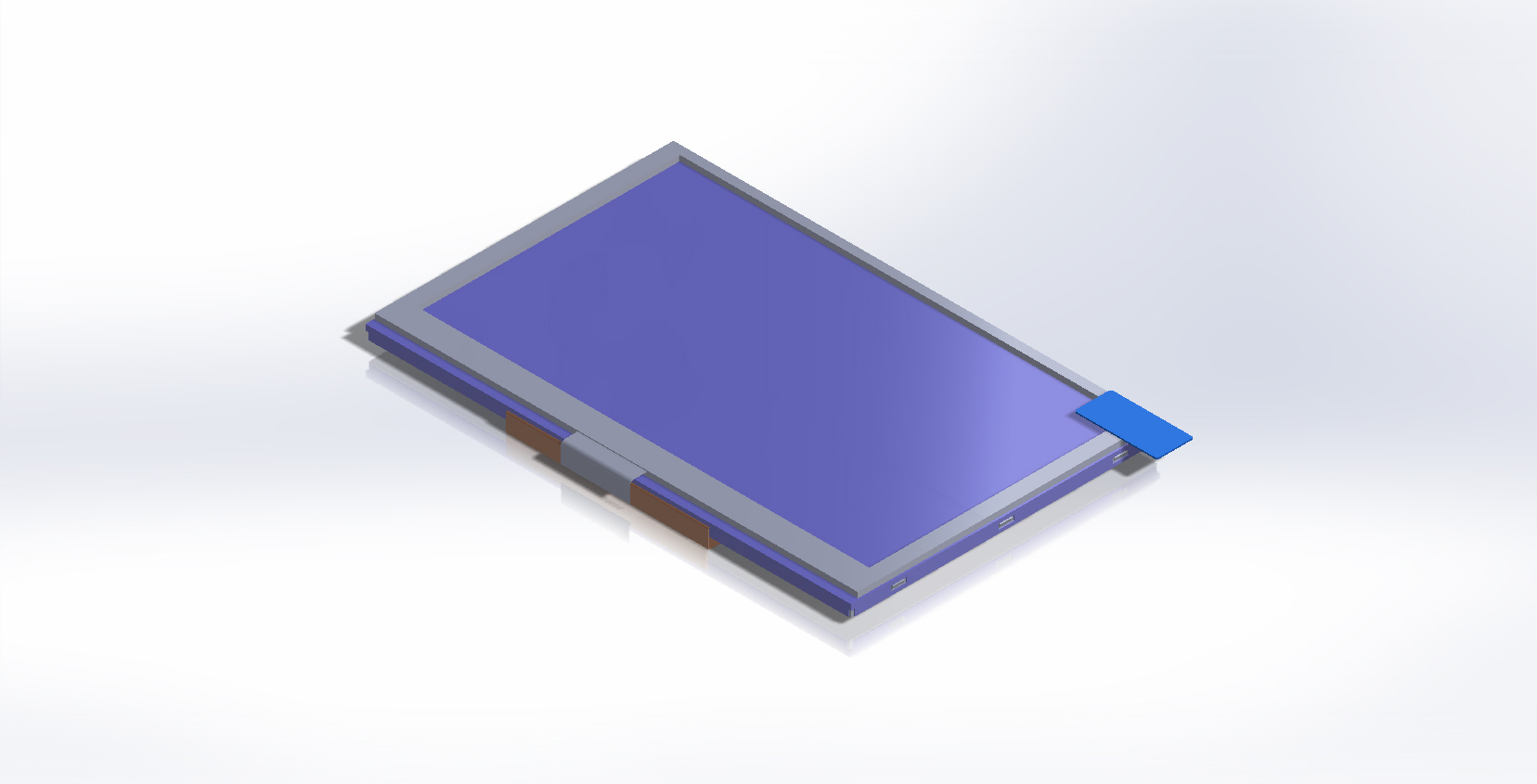

| Touch Screen Options | Resistive Touch Screen or Capacitive Touch Screen |
| PCAP Touch Controller | FocalTech FT5x46 |
Support
Technical Support Notes
Setting up the display
Please refer to the Himax HX2587-A01 datasheet for the detailed RGB timing setup on the hardware.
This RGB display works out of the box however requires:
- setup of V-Sync, H-Sync, pixel clock, display buffer, and clock polarity (details found in Himax HX2587-A01 datasheet)
- setup the serial interface to the display to change display parameters (see Initialization Code for best parameters)
Technical Forum
For any technical questions on this display, please post in the DT043BTFT forum.
