DT028DTFT-IPS

2.8" TFT IPS Display

  • DT028DTFT

Request a Quote

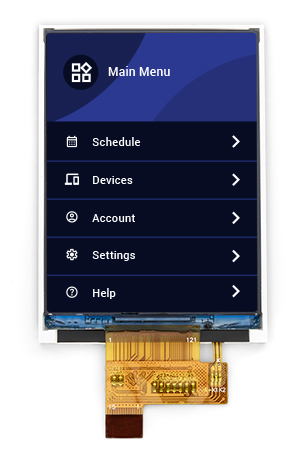

2.8 inch IPS TFT Display with Optional Super High Bright LED Backlight

The DT028DTFT-IPS series is a 2.8-inch TFT LCD with 240x320 resolution, in-plane switching technology, and optional super high bright LED backlight. The IPS technology in this display ensures consistent and accurate colors, making it ideal for applications that demand color precision and where viewing angle cannot be compromised. Choose from a standard backlight option of 350 cd/m2 or the super high bright LED backlight of 1000 cd/m2. The luminance of the super high bright LED backlight evolves this TFT into a sunlight readable display with crisp graphics even in bright, outdoor conditions. This 2.8” IPS TFT display is suitable for IoT devices, industrial control panels, and other embedded systems.

Technical Overview

Diagonal Screen Size 2.8 inch
Display Resolution 240 (RGB) x 320
Viewing Angle ALL (IPS)
Interface Type SPI
Luminance 350 cd/m2 (Standard); 1000 cd/m2 (SHB)
LCD Driver IC Ilitek ILI9341
Module Size (w x h) 48.7 x 68.85 mm
Active Area (w x h) 43.2 x 57.6 mm
Pixel Size 0.18 x 0.18 mm
Operating Temperature -20 ~ 70°C

Support Documents

Technical Support Notes

Recommended mating connector: Hirose Electric Co Ltd FH12A-15S-0.5SH(55) or equivalent
