DT018BTFT
1.8" TFT Display
Request a Quote

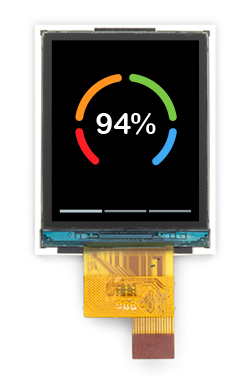

1.8 inch 128 x 160 TFT Display with Optional Super High Bright LED Backlight
The DT018BTFT is an LCD module designed for showcasing vibrant colors and sharp images, making it an ideal choice for applications demanding clarity and detail. This 1.8” TFT LCD offers 128x160 resolution with optional super high bright backlight (SHB). Choose from a standard backlight option of 350 cd/m2 or the super high bright LED backlight of 1000 cd/m2. The luminance of the super high bright LED backlight makes it a sunlight readable display with crisp images even in bright, outdoor conditions. This impressive small 1.8” color display is best suited for video systems, mobile devices, wearables, and more.
Technical Overview
| Diagonal Screen Size | 1.8 inch |
| Display Resolution | 128 (RGB) x 160 |
| Viewing Angle | 6 o'clock |
| Interface Type | 3-Line SPI, 4-Line SPI |
| Luminance | 350 cd/m2 (Standard); 1000 cd/m2 (SHB) |
| LCD Driver IC | Ilitek ILI9163C |
| Module Size (w x h) | 34 x 43.78 mm |
| Active Area (w x h) | 28.03 x 35.04 mm |
| Operating Temperature | -20 ~ 70°C |
Datasheets
Support Documents
Technical Support Notes
Recommended mating connector: Hirose Electric Co Ltd FH12A-15S-0.5SH(55) or equivalent
