DT035BTFT
3.5" Color TFT LCD Display Module
-
-
Request a Quote

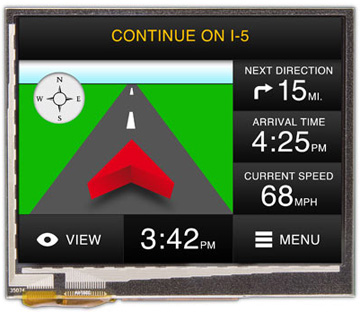

320x240 3.5" TFT Display with Optional Resistive or Capacitive Touch Screen
Display brilliant colors on the Displaytech 3.5 inch TFT LCD module! This LCD display has 320 x 240 RGB resolution and uses the NewVision NV3035C single chip digital driver. The TFT driver IC supports 16M colors allowing for a range of hues to be displayed and can also support up to 22 different types of input video formats within RGB, CCIR656, and CCIR601 video formats. The 3.5” TFT is available with a touch screen panel in either resistive (single-finger or stylus pressure) or capacitive (five-finger, multi-gesture) touchscreen technology.
Technical Overview
| Diagonal Screen Size | 3.5 inch |
| Display Resolution | 320 (RGB) x 240 |
| Viewing Angle | 12 o'clock |
| Interface Type | RGB |
| Brightness | 600 cd/m2 |
| LCD Driver IC | NewVision NV3035C |
| Module Size (w x h) | 76.9 x 64 mm |
| Active Area (w x h) | 70.08 x 52.56 mm |
| Pixel Size | 0.219 x 0.219 mm |
| Operating Temperature | -20 ~ 70°C |
| Touch Screen Options | Resistive Touch Screen or Capacitive Touch Screen |
| PCAP Touch Controller | FocalTech FT5x46 |
Support
Technical Support Notes
The display driver IC datasheet provides detailed RGB timings to set up your hardware. We do not have example code for this display as this is customer hardware specific.
The display is measured with 3.3V current at 10.25 mA (this doesn't include the backlight).
Technical Forum
For any technical questions on this display, please post in the DT035BTFT forum.
