DT028BTFT

2.8" Color TFT LCD Display

  • DT028BTFT-PTS1 Energy Efficient 2.8 inch TFT LCD with Capacitive Touchscreen
  • DT028BTFT Energy Efficient 240x320 2.8 inch Color TFT LCD Display

Request a Quote

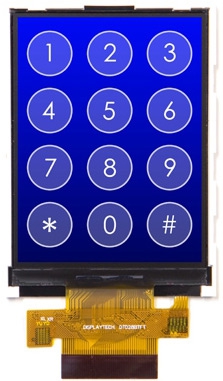

240x320 2.8" TFT Display with High Efficient LED Backlight and Optional Touch Screen

The DT028BTFT series is the latest revision for the 2.8" TFT LCD. The improvement in this version is an increased efficiency due to new LEDs within the backlight. This efficient 2.8 inch TFT LCD has a 240 x 320 resolution and is available as non-touch or with optional resistive touch or capacitive touch display. The TFT uses the Ilitek ILI9341 single-chip driver to drive the display. The 2.8” TFT LCD is best interfaced either in 8-bit or 16-bit mode via MCU parallel or RGB interfaces. The display can also be interfaced via a 3-wire or 4-wire serial peripheral interface (SPI).

Technical Overview

Diagonal Screen Size 2.8 inch
Display Resolution 240 (RGB) x 320
Viewing Angle 6 o'clock
Interface Type MCU Parallel, RGB
Brightness 280 cd/m2
LCD Driver IC Ilitek ILI9341
Module Size (w x h) 50 x 69.2 mm
Active Area (w x h) 43.2 x 57.6 mm
Pixel Size 0.18 x 0.18 mm
Operating Temperature -20 ~ 70°C
Touch Screen Option Resistive or Capacitive Touch Screen

Support Documents

Technical Support Notes

Sample Code

The provided display driver example code is designed to work with Microchip, however it is generic enough to work with other micro-controllers. The code includes display reset sequence, initialization and example PutPixel() function.

SPI Interfaces

3-line Serial Interface
See ILI9341 datasheet sections 7.1.8 - 7.1.10, 7.6.1 and 19.3.3

4-line Serial Interface
See ILI9341 datasheet sections 7.1.8 - 7.1.10, 7.6.2 and 19.3.4

Reference Schematic

Please see the DT028CTFT for reference designs. The schematics between the B and the C are the same with the exception that the B does not have the IPS interface.

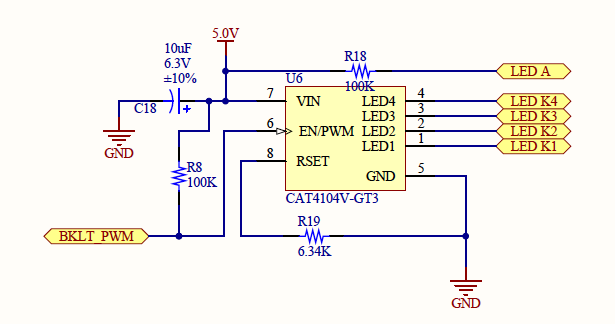

Example Backlight Circuit

Beyond the example backlight circuit listed above, please also refer to CAT4104 LED Driver Datasheet.

Technical Forum

For any technical questions on this display, please post in the DT028BTFT forum.
