DT028CTFT
2.8" TFT IPS Display
-
-
Request a Quote

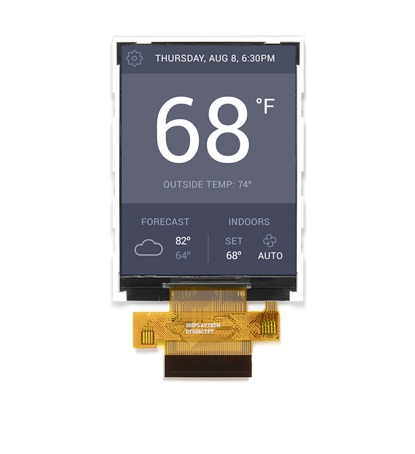

240 x 320 2.8" IPS LCD with Optional Capacitive Touch Screen
Enhance your product with our 2.8" TFT LCD module with IPS panel. This LCD module has 240 x 320 RGB resolution with a full viewing angle from any direction. The 2.8 inch LCD uses the Ilitek ILI9341 single-chip driver to drive the display. The IPS display offers improved color accuracy, crisp images, and high refresh rate. This 2.8” IPS TFT LCD module includes a color TFT-LCD, driver IC, FPC, and LED backlight. Available in a standard non-touch or capacitive touch screen display.
Technical Overview
| Diagonal Screen Size | 2.8 inch |
| Display Resolution | 240 (RGB) x 320 |
| Viewing Angle | ALL |
| Interface Type | MCU Parallel, RGB |
| Luminance | up to 500 cd/m2 |
| LCD Driver IC | Ilitek ILI9341 |
| Module Size (w x h) | 50 x 69.2 mm |
| Active Area (w x h) | 43.2 x 57.6 mm |
| Pixel Size | 0.18 x 0.18 mm |
| Operating Temperature | -20 ~ 70°C |

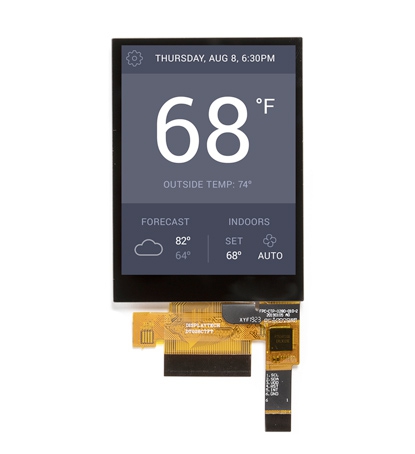

| Touch Screen Option | Capacitive Touch Screen |
| PCAP Touch Controller | FocalTech FT5x46 |
