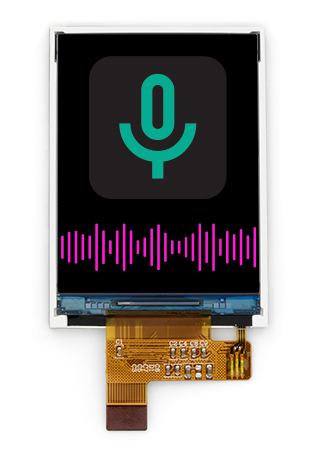

DT024ETFT-IPS
2.4" IPS TFT Display
Request a Quote
2.4 inch IPS TFT Display with Optional Super High Bright LED Backlight
The DT024ETFT-IPS combines its compact size with vivid visual performance, making it an ideal choice for a variety of electronic devices. This display utilizes Thin-Film Transistor (TFT) technology, ensuring fast response times and impressive color reproduction. The In-Plane Switching (IPS) technology further enhances viewing angles and color accuracy, providing a crystal-clear display even when viewed from different perspectives. This 2.4-inch TFT IPS display has a 240 x 320 resolution with a super high bright backlight option. The luminance of the super high bright backlight transforms this TFT into a sunlight readable display, ensuring that your screen’s GUI remain crisp and clear even in the brightest outdoor conditions. The 2.4-inch TFT IPS display is ideal for a variety of use cases where space is a premium.
Technical Overview
| Diagonal Screen Size | 2.4 inch |
| Display Resolution | 240 (RGB) x 320 |
| Viewing Angle | ALL (IPS) |
| Interface Type | SPI |
| Luminance | 350 cd/m2 (Standard); 1000 cd/m2 (SHB) |
| LCD Driver IC | Ilitek ILI9341 |
| Module Size (w x h) | 42.52 x 59.86 mm |
| Active Area (w x h) | 36.72 x 48.96 mm |
| Operating Temperature | -20 ~ 70°C |
Datasheets
Support Documents
Technical Support Notes
Recommended mating connector: Molex 5051101592 (or equivalent)
