DT024DTFT

2.4" Color TFT LCD with IPS Display


Request a Quote

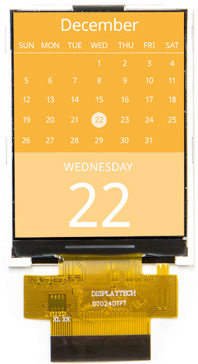

240x320 2.4" TFT Display with IPS Screen

Get the latest TFT technology with this 2.4" TFT LCD module with IPS panel. This LCD module has 240 x 320 RGB resolution with a viewing angle from all directions. The 2.4 inch LCD uses the Ilitek ILI9341 single-chip driver to drive the display. This driver has a full color display mode that supports up to 262K colors allowing it to show practically any shade of color. The IPS display offers improved color accuracy, crisp images, a wide viewing angle, and high refresh rate. This 2.4” IPS TFT LCD module includes a color TFT-LCD, driver IC, FPC, and LED backlight.

Technical Overview

Diagonal Screen Size	2.4 inch
Display Resolution	240 (RGB) x 320
Viewing Angle	ALL (IPS Panel)
Interface Type	MCU Parallel, RGB
Brightness	220 cd/m²
LCD Driver IC	Ilitek ILI9341
Module Size (w x h)	42.72 x 59.46 mm
Active Area (w x h)	36.72 x 48.96 mm
Operating Temperature	-20 ~ 70°C

Datasheets

2.4" TFT Datasheet

Display Driver Datasheet

Ilitek ILI9341 TFT Driver Datasheet

Sample Code

DT024DTFT Initialization Sample Code

Sample Code

Ilitek ILI9341 Driver Sample Code

Reference Design

DT024DTFT RGB 18-Bit with Serial Data Configuration

CAD (.stp)

DT024DTFT 3D Model (.stp)

ZIF Connector

45-Pin Connector

General Support

Read/Write Commands for ILI9341: 8-bit MCU Mode

Technical Support Notes

SPI Interfaces

3-line Serial Interface
See ILI9341 datasheet sections 7.1.8 - 7.1.10, 7.6.1 and 19.3.3

4-line Serial Interface
See ILI9341 datasheet sections 7.1.8 - 7.1.10, 7.6.2 and 19.3.4

DT024DTFT vs DT024CTFT Displays

The DT024DTFT uses the same connections as DT024CTFT (please also see DT024CTFT for reference designs).

The D version has four LEDs in series with a 15 mA current, while the C version (DT024CTFT) has three LEDs in series at 20 mA current.

The brightness of both versions is the same at 220 cd/m².

If using a boost driver like the CAT4139, you will need to change the current set resistor to lower the current to 15 mA. The CAT4139 will generate the higher voltage needed automatically.

If driving the backlight of the C version display with 12 Volts and a series resistor, substituting a D version display will not work since the four LEDs need more than 12 Volts to get the same current flowing.

Technical Forum

For any technical questions on this display, please post in the DT024DTFT forum.
