DT010ATFT
Micro 1” TFT LCD Display
Request a Quote

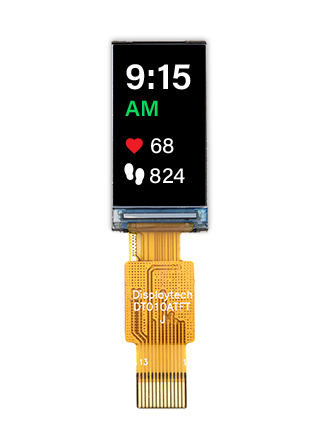

80x160 1” Micro LCD Screen with IPS
Improve your product design by adding the DT010ATFT: a small, simple 1” TFT LCD with IPS technology. This mini TFT display is perfect as a status indicator presenting graphic icons or simplified information. The IPS technology included in this display allows your content to be crisp and clear no matter what angle your user is viewing it from. The ST7735S driver IC provides on-chip storage and power system. This IC allows for fewer components and a simple design to easily integrate the DT010ATFT into your next product.
Technical Overview
| Diagonal Screen Size | 1.0 inch |
| Display Resolution | 80 (RGB) x 160 |
| Viewing Angle | ALL |
| Interface Type | 4-Line SPI |
| Brightness | 300 cd/m2 |
| LCD Driver IC | Sitronix ST7735S |
| Module Size (w x h) | 13.5 x 27.95 mm |
| Active Area (w x h) | 10.8 x 21.7 mm |
| Pixel Size | 0.135 x 0.135 |
| Operating Temperature | -20 - 70°C |
Datasheets
Support
Technical Support Notes
- The FPC has been designed to solder directly to the board of high volume, low cost products.
- The FPC contains locating pins and does not have a stiffener to insert into a connector.
- Only supports 4-Wire SPI.
Recommended Board for Prototyping
Sample Code
The provided example code is designed to work with Microchip, however the code is generic enough to work with other micro-controllers.
Technical Forum
For any technical questions on this display, please post in the DT010ATFT forum.
