HDP-25 Series

25W Embedded Power Supply

  • Image

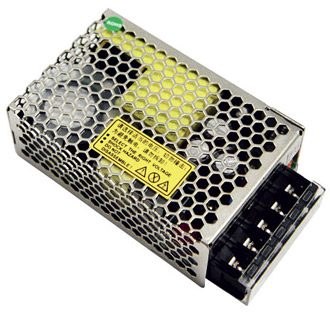

    HDP-25 Series - 25W Embedded Power Supply

Request a Quote

25W Single Output Embedded AC-DC Power Supply

The HDP-25 series is an embedded 25 watt power supply with conformal coating. This switch mode power supply is available in 3.3V, 5V, 12V, 15V, and 24V DC output. The HDP-25 series features high power density, high efficiency, long life and high reliability. Output protections include over load, over voltage, and shorted circuit protections. The HDP-25 offers many safety certifications and EMC standards including UL 60950 1 (2nd ed.), IEC 60950 1 (2nd ed.), and EN 61000.

Technical Overview

Type Closed
Wattage 25W
Input Voltage 90 ~ 264
Voltage 3.3, 5, 12, 15, 24
Current 0 ~ 5A
Dimensions 79 x 51 x 28.8 mm
Output Single
Certifications UL, cUL, CE, CB



HDP-25 Mechanical Specs
